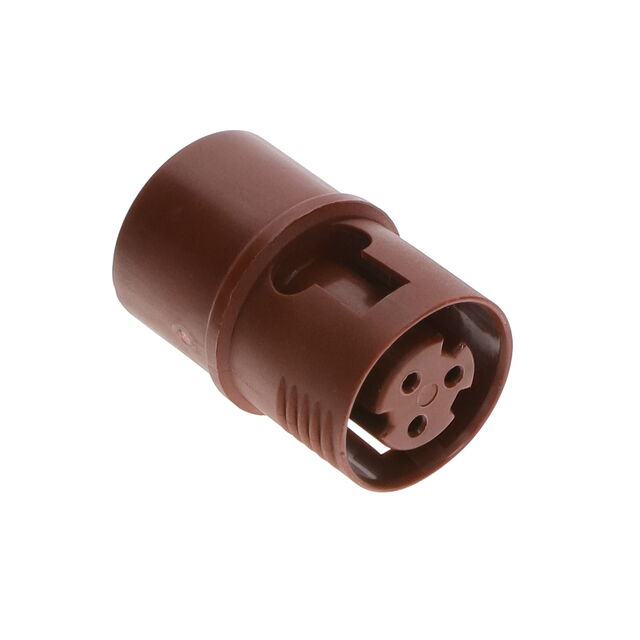

SJS620100

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 3POS INLINE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG HSG FMALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SJS620100

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Detent Lock
Housing Color	Red
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	203 °F
Operating Temperature [Min]	-55 °C
Orientation	A
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	8
Shielding	Unshielded
Type	For Female Sockets

Part	Mounting Type	Housing Color	Shell Material	Connector Type	Orientation	Material Flammability Rating	Ingress Protection	Contact Shape	Shell Size - Insert	Type	Fastening Type	Note	Contact Type	Shielding	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]
AMPHENOL PCD SJS620200	Free Hanging (In-Line)	Red	Polyamide (PA66) Nylon 6/6	Receptacle Housing	A	UL94 V-0	IP67 - Dust Tight Waterproof	Circular	8	For Male Pins	Detent Lock	Contacts Not Included	Crimp	Unshielded	20	203 °F	-55 °C
AMPHENOL PCD SJS620100	Free Hanging (In-Line)	Red	Polyamide (PA66) Nylon 6/6	Plug Housing	A	UL94 V-0	IP67 - Dust Tight Waterproof	Circular	8	For Female Sockets	Detent Lock	Contacts Not Included	Crimp	Unshielded	20	203 °F	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug Housing Free Hanging (In-Line)
