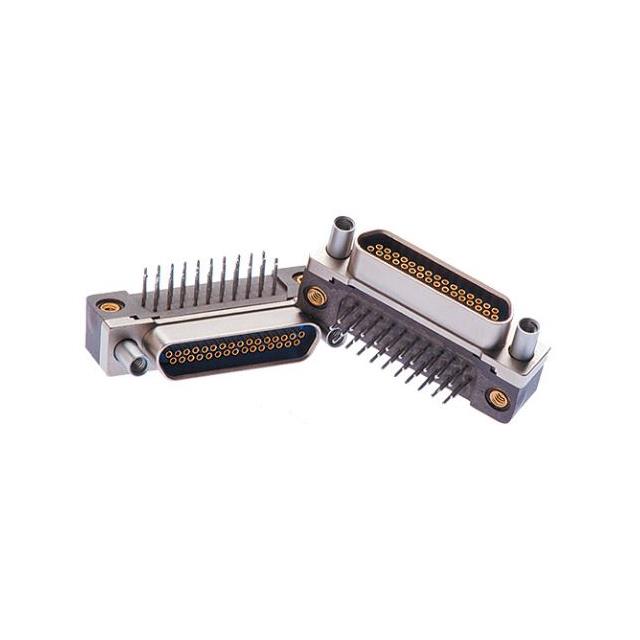

DCHM25SCBRPN-HT1

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLUG 25POS HI-TEMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLUG 25POS HI-TEMP

Technical Specifications

Parameters and characteristics for this part

Specification	DCHM25SCBRPN-HT1

Connector Style	Micro-D, D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Dielectric Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole, Right Angle
Number of Rows	2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-40 °C
Shell Material, Finish	Electroless Nickel
Shell Size, Connector Layout [custom]	0.1
Shell Size, Connector Layout [custom]	0.1
Termination	Solder

Part	Number of Rows	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Contact Type	Mounting Type	Dielectric Material
Cinch Connectivity Solutions Trompeter DCHM25SCBRPN-HT1	2	Electroless Nickel	-40 °C	347 °F	Solder	D-Type Micro-D	0.1	0.1	50 µin	1.27 µm	Receptacle Female Sockets	Gold	Signal	Through Hole Right Angle	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 Position D-Type, Micro-D Receptacle, Female Sockets Connector
