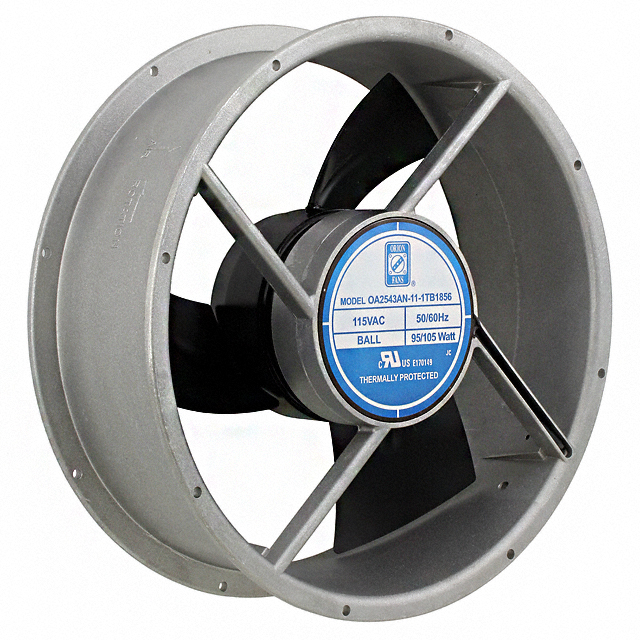

OA2543AN-11-1TB1856

Active

Orion Fans

AC FAN, 930 CFM, 3300 RPM, 105 W, 115 VAC, 67 DB, 254 MM X 89 MM, TERMINALS

Search across all available documentation for this part.

Active

Orion Fans

AC FAN, 930 CFM, 3300 RPM, 105 W, 115 VAC, 67 DB, 254 MM X 89 MM, TERMINALS

Technical Specifications

Parameters and characteristics for this part

Specification	OA2543AN-11-1TB1856

Air Flow	930 CFM
Air Flow	26.04 m³/min
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	67 dB
Power (Watts)	105 W
RPM	3300 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	1.07 in H2O
Static Pressure	266.5 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	120 VAC
Voltage Range [Min]	100 VAC
Weight	2.1 kg
Weight	4.6 lbs
Width [y]	89 mm

Part	Weight	Weight	Noise	Width [y]	Lifetime @ Temp.	Material - Frame	Ingress Protection	Approval Agency	RPM	Fan Type	Material - Blade	Size / Dimension [diameter]	Size / Dimension	Termination	Air Flow	Air Flow	Features	Voltage - Rated	Bearing Type	Power (Watts)	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]
Orion Fans OA2543AN-22-1WB1856	2.1 kg	4.6 lbs	67 dB	89 mm	50000 Hrs	Aluminum	IP56 - Dust Protected Water Resistant	cURus TUV	3300 RPM	Tubeaxial	Metal	10 in	Round	2 Wire Leads	930 CFM	26.04 m³/min	Capacitor Thermal Overload Protector (TOP)	230 VAC	Ball	105 W	1.07 in H2O	266.5 Pa
Orion Fans OA2543AN-22-1TB1856	2.1 kg	4.6 lbs	67 dB	89 mm	50000 Hrs	Aluminum	IP56 - Dust Protected Water Resistant	cURus TUV	3300 RPM	Tubeaxial	Metal	10 in	Round	2 Terminals	930 CFM	26.04 m³/min	Capacitor Thermal Overload Protector (TOP)	230 VAC	Ball	105 W	1.07 in H2O	266.5 Pa
Orion Fans OA2543AN-11-1TB1856	2.1 kg	4.6 lbs	67 dB	89 mm	50000 Hrs	Aluminum	IP56 - Dust Protected Water Resistant	cURus TUV	3300 RPM	Tubeaxial	Metal	10 in	Round	2 Terminals	930 CFM	26.04 m³/min	Capacitor Thermal Overload Protector (TOP)	115 VAC	Ball	105 W	1.07 in H2O	266.5 Pa	120 VAC	100 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	6	$ 136.68
Newark	Each	1	$ 171.30
		1000	$ 157.03

General part information

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 930.0 CFM (26.04m³/min) 2 Terminals
