310-12-0030-A

Active

CnC Tech, LLC

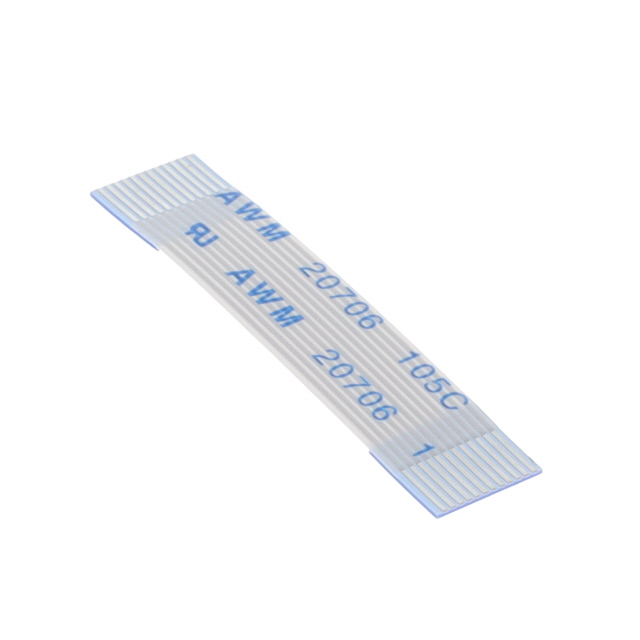

CABLE FFC/FPC 12POS 0.5MM 1.18"

Search across all available documentation for this part.

Active

CnC Tech, LLC

CABLE FFC/FPC 12POS 0.5MM 1.18"

Technical Specifications

Parameters and characteristics for this part

Specification	310-12-0030-A

Cable Type	FPC, FFC
Length	29.97 mm
Length	1.18 in
Length - Exposed Ends [x]	3.5 mm
Length - Exposed Ends [x]	0.138 in
Number of Conductors	12
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Number of Conductors	Cable Type	Termination Style	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Length	Length	Pitch [x]	Pitch [x]	Length [x]	Length [x]
CnC Tech, LLC 310-12-0030	12	FFC FPC	Backers on Both Sides Top on Both Sides	3.5 mm	0.138 in	29.97 mm	1.18 in	0.5 mm	0.02 in
CnC Tech, LLC 310-12-0100-A	12	FFC FPC	Backers on Both Sides Top on Both Sides	3.5 mm	0.138 in			0.5 mm	0.02 in	3.94 "	100.08 mm
CnC Tech, LLC 310-12-0051	12	FFC FPC	Backers on Both Sides Top on Both Sides	3.5 mm	0.138 in	50.8 mm	2 in	0.5 mm	0.02 in
CnC Tech, LLC 310-12-0030-A	12	FFC FPC	Backers on Both Sides Top on Both Sides	3.5 mm	0.138 in	29.97 mm	1.18 in	0.5 mm	0.02 in
CnC Tech, LLC 310-12-0076	12	FFC FPC	Backers on Both Sides Top on Both Sides	3.5 mm	0.138 in	76.2 mm	3 in	0.5 mm	0.02 in
CnC Tech, LLC 310-12-0100	12	FFC FPC	Backers on Both Sides Top on Both Sides	3.5 mm	0.138 in			0.5 mm	0.02 in	3.937 in	0.1 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position FFC, FPC Cable 0.020" (0.50mm) 1.180" (29.97mm)
