09200032734

Active

HARTING Technology Group

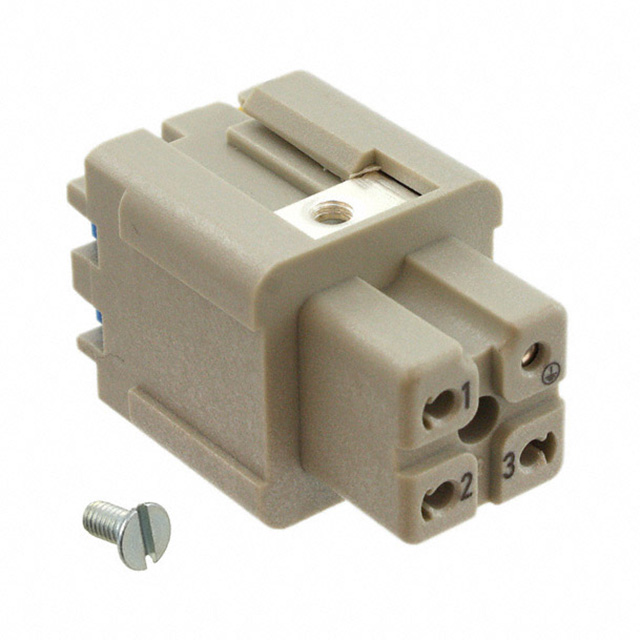

HEAVY DUTY CONNECTOR, HAN A SERIES, INSERT, 3 CONTACTS, 3A, RECEPTACLE, PUSH LOCK SOCKET

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN A SERIES, INSERT, 3 CONTACTS, 3A, RECEPTACLE, PUSH LOCK SOCKET

Technical Specifications

Parameters and characteristics for this part

Specification	09200032734

Color	Gray
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	3+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Push In with Lock
Voltage Rating	600 V

Part	Size	Current Rating (Amps)	Color	Termination Style	Contact Material	Material Flammability Rating	Housing Material	Gender	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Voltage Rating
HARTING Technology Group 09200032711	3 A	10 A	Gray	Screw	Copper Alloy	UL94 V-0	Polycarbonate (PC)	Female	3+Ground	125 °C	-40 °C	Silver	600 V
HARTING Technology Group 09200032633	3 A	10 A	Gray	Push In with Lock	Copper Alloy	UL94 V-0	Polycarbonate (PC)	Male	3+Ground	125 °C	-40 °C		600 V
HARTING Technology Group 09200032734	3 A	10 A	Gray	Push In with Lock	Copper Alloy	UL94 V-0	Polycarbonate (PC)	Female	3+Ground	125 °C	-40 °C		600 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 3+Ground Position Push In with Lock
