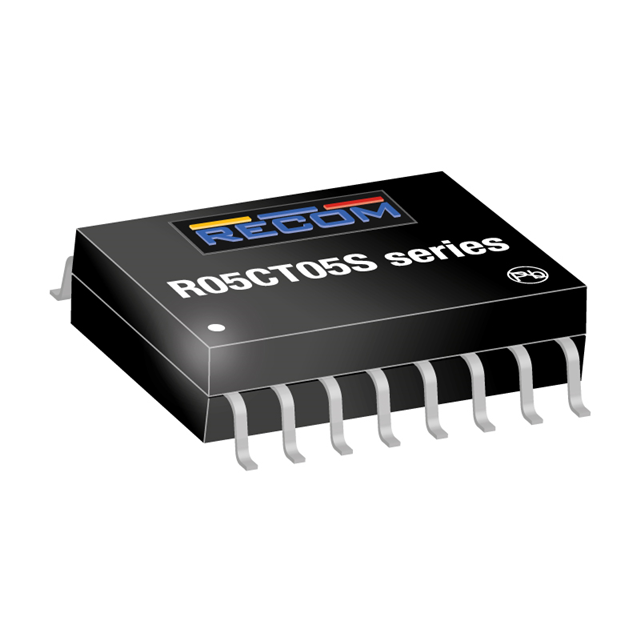

R05CT05S-R
ActiveRECOM Power
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 500 MW, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
R05CT05S-R
ActiveRECOM Power
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 1:1, 500 MW, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R05CT05S-R |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 100 mA |
| Efficiency | 60 % |
| Features | Remote On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 140 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SOIC |
| Package / Case [x] | 0.295 in |
| Package / Case [y] | 7.5 mm |
| Power (Watts) | 0.5 W |
| Size / Dimension | 0.41 in |
| Supplier Device Package | 16-SOIC |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 5000 V |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R05CT05 Series
Isolated Module DC DC Converter 1 Output 5V 100mA 4.5V - 5.5V Input
