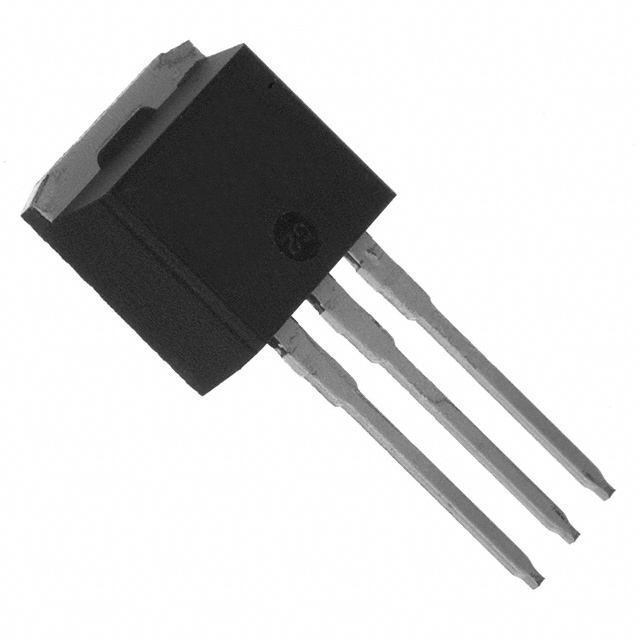

VS-10CTQ150-1PBF

Unknown

Vishay General Semiconductor - Diodes Division

DIODE ARR SCHOTT 150V 5A TO262-3

Search across all available documentation for this part.

Unknown

Vishay General Semiconductor - Diodes Division

DIODE ARR SCHOTT 150V 5A TO262-3

Technical Specifications

Parameters and characteristics for this part

Specification	VS-10CTQ150-1PBF

Current - Average Rectified (Io) (per Diode)	5 A
Current - Reverse Leakage @ Vr	50 µA
Diode Configuration	1 Pair Common Cathode
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-262AA, TO-262-3 Long Leads, I2PAK
Qualification	AEC-Q101
Speed	200 mA, 500 ns
Supplier Device Package	TO-262-3
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	1.1 V

Part	Diode Configuration	Mounting Type	Current - Average Rectified (Io) (per Diode)	Package / Case	Supplier Device Package	Operating Temperature - Junction [Max]	Speed	Qualification	Current - Reverse Leakage @ Vr	Technology	Grade	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Min]	Speed
Vishay General Semiconductor - Diodes Division VS-10CTQ150-1PBF	1 Pair Common Cathode	Through Hole	5 A	I2PAK TO-262-3 Long Leads TO-262AA	TO-262-3	175 °C	200 mA 500 ns	AEC-Q101	50 µA	Schottky	Automotive	1.1 V
Vishay General Semiconductor - Diodes Division VS-10CTQ150PBF	1 Pair Common Cathode	Through Hole	5 A	TO-220-3	TO-220-3	175 ░C	200 mA 500 ns		50 µA	Schottky		930 mV	-55 C
Vishay General Semiconductor - Diodes Division VS-10CTQ150STRL-M3	1 Pair Common Cathode	Surface Mount	5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	TO-263AB (D2PAK)	175 ░C			50 µA	Schottky		930 mV	-55 C	No Recovery Time
Vishay General Semiconductor - Diodes Division VS-10CTQ150-M3	1 Pair Common Cathode	Through Hole	5 A	TO-220-3	TO-220-3	175 ░C	200 mA 500 ns		50 µA	Schottky		1.1 V	-55 C
Vishay General Semiconductor - Diodes Division VS-10CTQ150SPBF	1 Pair Common Cathode	Surface Mount	5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	TO-263AB (D2PAK)	175 ░C	200 mA 500 ns		50 µA	Schottky		1.1 V	-55 C
Vishay General Semiconductor - Diodes Division VS-10CTQ150S-M3	1 Pair Common Cathode	Surface Mount	5 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	TO-263AB (D2PAK)	175 ░C			50 µA	Schottky		930 mV	-55 C	No Recovery Time

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 150 V 5A Through Hole TO-262-3 Long Leads, I2PAK, TO-262AA
