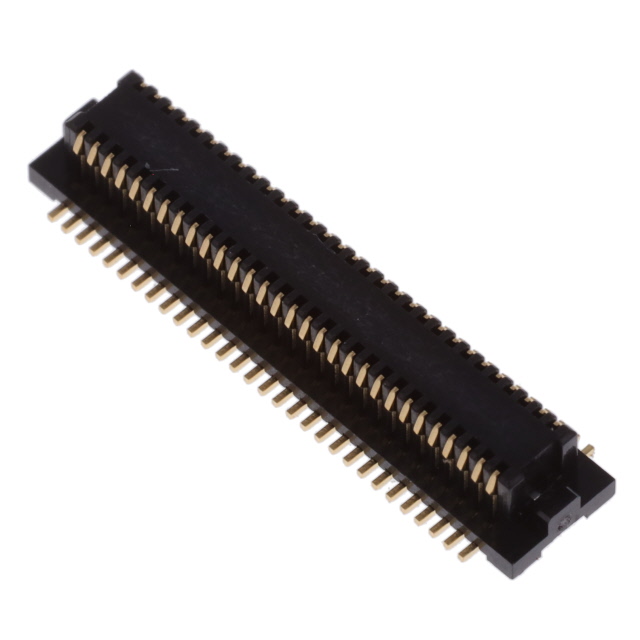

DF12NC-60DS-0.5V(51)
ActiveHirose Electric USA, Inc.
CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DF12NC-60DS-0.5V(51)
ActiveHirose Electric USA, Inc.
CONN RCPT 60POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF12NC-60DS-0.5V(51) |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Height Above Board [z] | 0.106 in |
| Height Above Board [z] | 2.7 mm |
| Mated Stacking Heights | 5 mm, 3.5 mm, 4 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.52 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 2.52 | ||
| 10 | $ 2.29 | |||
| 25 | $ 2.17 | |||
| 50 | $ 2.12 | |||
| 100 | $ 2.02 | |||
| 250 | $ 1.77 | |||
| 500 | $ 1.72 | |||
| Tape & Reel (TR) | 1000 | $ 1.46 | ||
| 2000 | $ 1.41 | |||
| 3000 | $ 1.36 | |||
| 5000 | $ 1.31 | |||
Description
General part information
DF12NC Series
60 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
