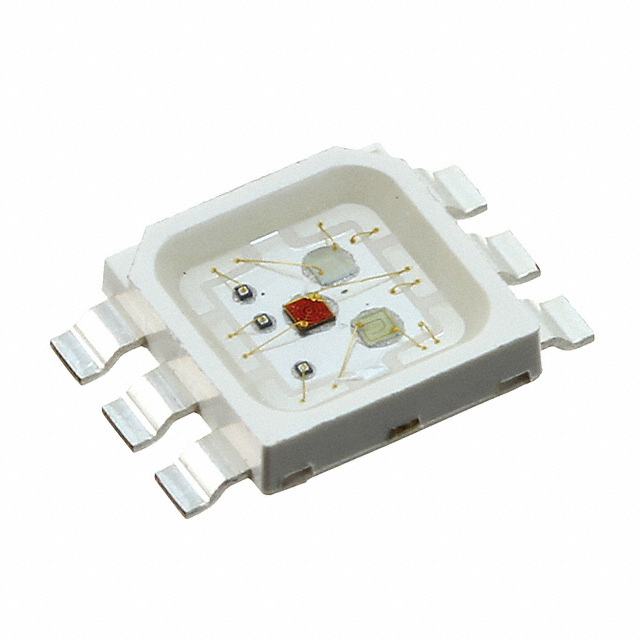

AAAF5051-05
ActiveKingbright
LED RGB CLEAR 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AAAF5051-05
ActiveKingbright
LED RGB CLEAR 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AAAF5051-05 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Current - Test [custom] | 150 mA |
| Current - Test [custom] | 150 mA |
| Current - Test [custom] | 150 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Color | Colorless |
| Lens Size | 4.25 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 9000 mcd, 2300 mcd, 4000 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Supplier Device Package | 6-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V, 3.3 V, 2.3 V |
| Wavelength - Dominant | 460 nm, 525 nm, 624 nm |
| Wavelength - Peak | 515 nm, 633 nm, 452 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.15 | |
| 10 | $ 3.64 | |||
| 100 | $ 2.98 | |||
| Digi-Reel® | 1 | $ 5.15 | ||
| 10 | $ 3.64 | |||
| 100 | $ 2.98 | |||
| Tape & Reel (TR) | 500 | $ 2.51 | ||
| 1000 | $ 2.31 | |||
| 2500 | $ 2.21 | |||
Description
General part information
AAAF5051 Series
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 460nm Blue LED Indication - Discrete 2.3V Red, 3.3V Green, 3.3V Blue 6-SMD, Gull Wing
