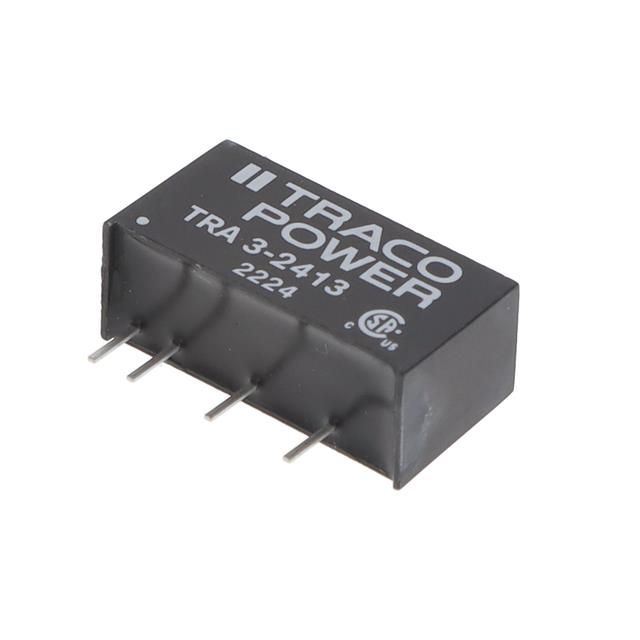

TRA 3-2413
ActiveTraco Power
DC DC CONVERTER 15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TRA 3-2413
ActiveTraco Power
DC DC CONVERTER 15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TRA 3-2413 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 85 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 95 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SIP Module, 4 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [x] | 19.5 mm |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 12.52 | |
| 10 | $ 11.50 | |||
| 25 | $ 11.12 | |||
| 50 | $ 10.85 | |||
| 100 | $ 10.57 | |||
| 250 | $ 10.22 | |||
| 500 | $ 9.97 | |||
Description
General part information
TRA 3 Series
Isolated Module DC DC Converter 1 Output 15V 200mA 21.6V - 26.4V Input
