MB2061LS1W03
ObsoleteNKK Switches

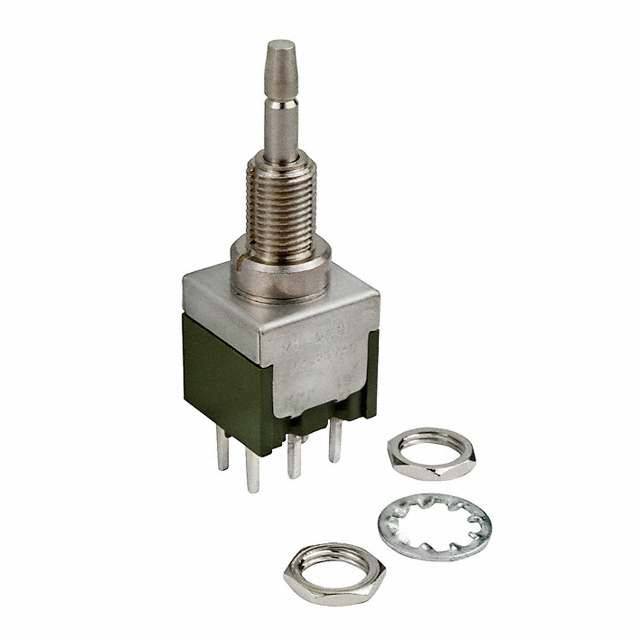

SWITCH PUSHBUTTON DPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB2061LS1W03
ObsoleteNKK Switches
SWITCH PUSHBUTTON DPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB2061LS1W03 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
MB2061L Series
| Part | Type | Mechanical Life | Voltage Rating - DC | Features | Current Rating (Amps) | Actuator Marking | Circuit | Actuator Type | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Electrical Life | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination Style | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Standard | 100000 Cycles | 30 V | Epoxy Sealed Terminals | 3 A 6 A | No Marking | DPDT | Button Round | 125 V | 6.5 mm | 25000 Steps | Black | -30 ░C | 85 °C | Panel Mount Rear | PC Pin | On-Mom |
NKK Switches | Standard | 100000 Cycles | 30 V | Epoxy Sealed Terminals | 3 A 6 A | No Marking | DPDT | Plunger for Cap | 125 V | 6.5 mm | 25000 Steps | -30 ░C | 85 °C | Panel Mount Rear | Solder Lug | On-Mom | |
NKK Switches | Standard | 100000 Cycles | 30 V | Epoxy Sealed Terminals | 3 A 6 A | No Marking | DPDT | Button Round | 125 V | 6.5 mm | 25000 Steps | Black | -30 ░C | 85 °C | Panel Mount Rear | Solder Lug | On-Mom |
NKK Switches | Standard | 100000 Cycles | 30 V | Low Temperature Lubricant | 3 A 6 A | No Marking | DPDT | Plunger for Cap | 125 V | 6.5 mm | 25000 Steps | -30 ░C | 85 °C | Panel Mount Rear | Solder Lug | On-Mom | |
NKK Switches | Standard | 100000 Cycles | 30 V | Epoxy Sealed Terminals | 3 A 6 A | No Marking | DPDT | Plunger for Cap | 125 V | 6.5 mm | 25000 Steps | -30 ░C | 85 °C | Panel Mount Rear | PC Pin | On-Mom | |
NKK Switches | Standard | 100000 Cycles | 30 V | Epoxy Sealed Terminals | 3 A 6 A | No Marking | DPDT | Plunger for Cap | 125 V | 6.5 mm | 25000 Steps | -30 ░C | 85 °C | Panel Mount Rear | PC Pin | On-Mom | |
NKK Switches | Standard | 100000 Cycles | 30 V | Epoxy Sealed Terminals | 3 A 6 A | No Marking | DPDT | Button Round | 125 V | 6.5 mm | 25000 Steps | Blue | -30 ░C | 85 °C | Panel Mount Rear | Solder Lug | On-Mom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | N/A | 1 | $ 0.00 | |
Description
General part information
MB2061L Series
Pushbutton Switch DPDT Standard Panel Mount, Rear
Documents
Technical documentation and resources
