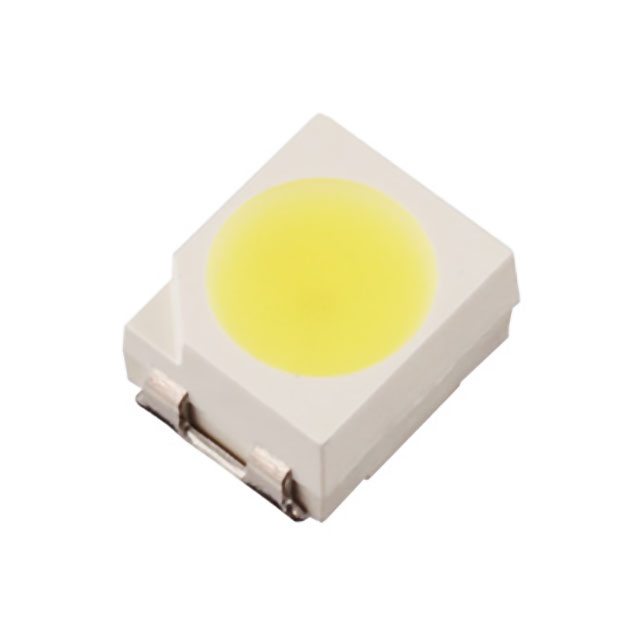

VSTW1154LDSE-3D4K3-TR
ActiveStanley Electric Co
LED WHITE DIFFUSED 2PLCC SMD
Deep-Dive with AI
Search across all available documentation for this part.
VSTW1154LDSE-3D4K3-TR
ActiveStanley Electric Co
LED WHITE DIFFUSED 2PLCC SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VSTW1154LDSE-3D4K3-TR |
|---|---|
| Color | White |
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) [Max] [z] | 2.1 mm |
| Lens Color | Yellow |
| Lens Size [diameter] | 2.4 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 2200 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.76 | |
| 10 | $ 0.50 | |||
| 100 | $ 0.33 | |||
| 1000 | $ 0.26 | |||
| Digi-Reel® | 1 | $ 0.76 | ||
| 10 | $ 0.50 | |||
| 100 | $ 0.33 | |||
| 1000 | $ 0.26 | |||
| Tape & Reel (TR) | 2000 | $ 0.24 | ||
| 6000 | $ 0.23 | |||
| 10000 | $ 0.23 | |||
Description
General part information
VSTW1154 Series
White LED Indication - Discrete 3.4V 2-PLCC
Documents
Technical documentation and resources
No documents available
