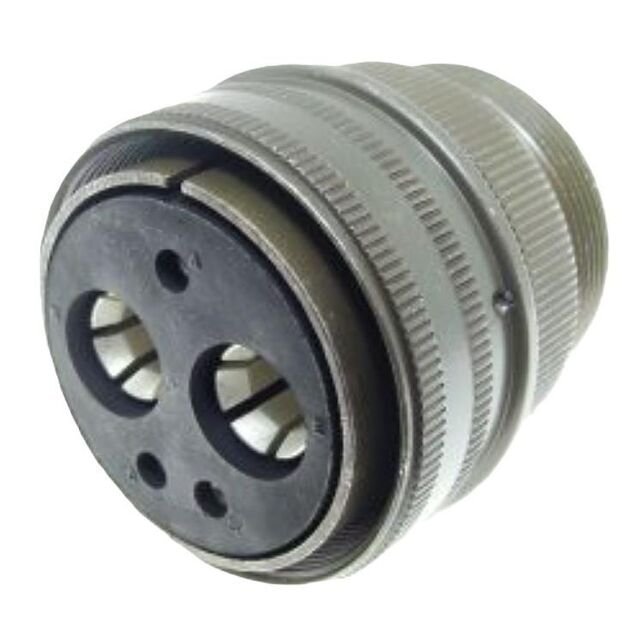

MS27466T11B2S

Active

Corsair

CONN RCPT FMALE 2POS GOLD CRIMP

Search across all available documentation for this part.

Active

Corsair

CONN RCPT FMALE 2POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27466T11B2S

Applications	Aerospace, Aviation, Military
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Fastening Type	Bayonet Lock
Ingress Protection	Environment Resistant
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	2
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Shell Material	Aluminum Alloy
Shell Size - Insert	11-2
Shell Size, MIL	B
Shielding	Unshielded
Termination	Crimp
Voltage Rating	500 VAC

Part	Connector Type	Mounting Feature	Shielding	Number of Positions	Contact Finish - Mating	Fastening Type	Shell Size - Insert	Termination	Orientation	Color	Applications	Ingress Protection	Shell Size, MIL	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Material Flammability Rating	Voltage Rating	Shell Material	For Use With/Related Products	Grade	Qualification	Accessory Type	Shell Size - Insert	Features
Corsair MS27466T11B4PC	Male Pins Receptacle	Flange	Shielded	4	Gold	Bayonet Lock	11-4	Crimp	C	Olive Drab
Corsair MS27466T11B2S	Receptacle Female Sockets	Flange	Unshielded	2	Gold	Bayonet Lock	11-2	Crimp	N	Olive Drab	Aerospace Aviation Military	Environment Resistant	B	-65 ░C	347 °F	Metal	UL94 V-0	500 VAC	Aluminum Alloy
Corsair MS27466T11B35PC										Olive Drab										38999 Series 1 Connector	Military	MIL-DTL-38999 Series I	Dummy Receptacle	11	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Crimp
