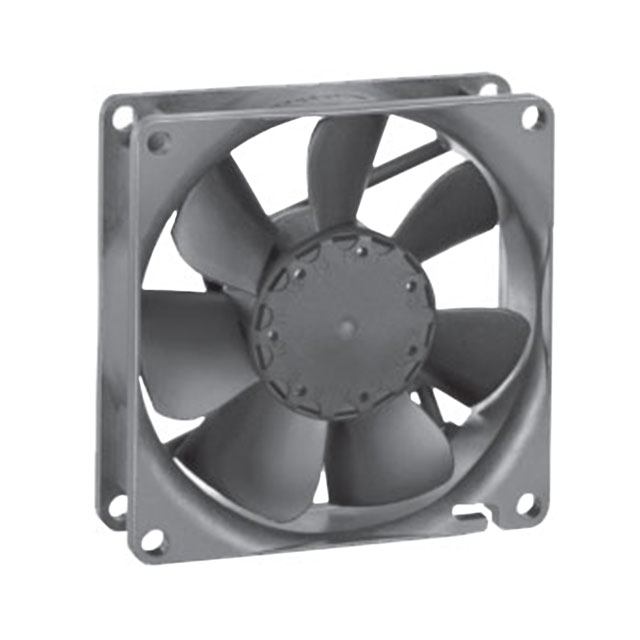

8414NLU

Active

ebm-papst Inc.

FAN AXIAL 80X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8414NLU

Active

ebm-papst Inc.

FAN AXIAL 80X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8414NLU

Air Flow	19.4 CFM
Air Flow	0.543 m³/min
Approval Agency	UL
Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	17 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	0.8 W
RPM	1500 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	28 VDC
Voltage Range [Min]	18 VDC
Width [y]	25.4 mm

8414 Series

Part	Material - Blade	Termination	Noise	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Power (Watts)	Width [y]	RPM	Voltage - Rated	Material - Frame	Features	Fan Type	Air Flow	Air Flow	Approval Agency	Weight	Weight	Operating Temperature [Max]	Ingress Protection	Current Rating (Amps)
ebm-papst Inc. 8414N/2GM	Fiberglass Reinforced Nylon Polyamide (PA)	3 Wire Leads	37 dB	Sintec	18 VDC	28 VDC	80 mm	80 mm	-20 °C	70 °C	-20 C	70 °C	80000 Hrs	1.4 W	25.4 mm	2600 RPM	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Speed Sensor (Tach)	Tubeaxial
ebm-papst Inc. 8414NH-221	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	32 dB	Ball	18 VDC	28 VDC	80 mm	80 mm	-20 °C	70 °C	-20 C	70 °C	70000 Hrs	2.2 W	25.4 mm	3600 RPM	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	1.3 m³/min	46.5 CFM	CE CSA UL VDE
ebm-papst Inc. 8414NGL	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	12 dB(A)	Sintec	18 VDC	28 VDC	80 mm	80 mm	-20 °C	70 °C	-20 C	70 °C	80000 Hrs	700 mW	25.4 mm	1500 RPM	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	0.543 m³/min	19.4 CFM	CE CSA UL VDE
ebm-papst Inc. 8414NHU	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	37 dB	Ball	18 VDC	26 VDC	80 mm	80 mm	-20 °C		-20 C	65 °C		2.4 W	25.4 mm	3600 RPM	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	1.3 m³/min	46.5 CFM	UL	95.25 g	0.21 lb	65 °C	IP68 - Dust Tight Waterproof
ebm-papst Inc. 8414NLU	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	17 dB	Ball	18 VDC	28 VDC	80 mm	80 mm	-20 °C	70 °C	-20 C	70 °C		0.8 W	25.4 mm	1500 RPM	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	0.543 m³/min	19.4 CFM	UL				IP68 - Dust Tight Waterproof
ebm-papst Inc. 8414NM	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	27 dB(A)	Ball	18 VDC	28 VDC	80 mm	80 mm	-20 °C	70 °C	-20 C	70 °C	80000 Hrs	1.4 W	25.4 mm	2600 RPM	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	0.955 m³/min	34.1 CFM	CE CSA UL VDE
ebm-papst Inc. 8414NGH	Fiberglass Reinforced Nylon Polyamide (PA)	2 Wire Leads	37 dB	Sintec	18 VDC	28 VDC	80 mm	80 mm	-20 °C	70 °C	-20 C	70 °C	70000 Hrs	2.6 W	25.4 mm	3600 RPM	24 VDC	Polybutylene Terephthalate (PBT) Fiberglass Reinforced		Tubeaxial	1.3 m³/min	46.5 CFM	CE CSA UL VDE	95.25 g	0.21 lb			110 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.17
		10	$ 55.34
		25	$ 51.70
		50	$ 50.97
		100	$ 46.97

Description

General part information

8414 Series

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 19.4 CFM (0.543m³/min) 2 Wire Leads
