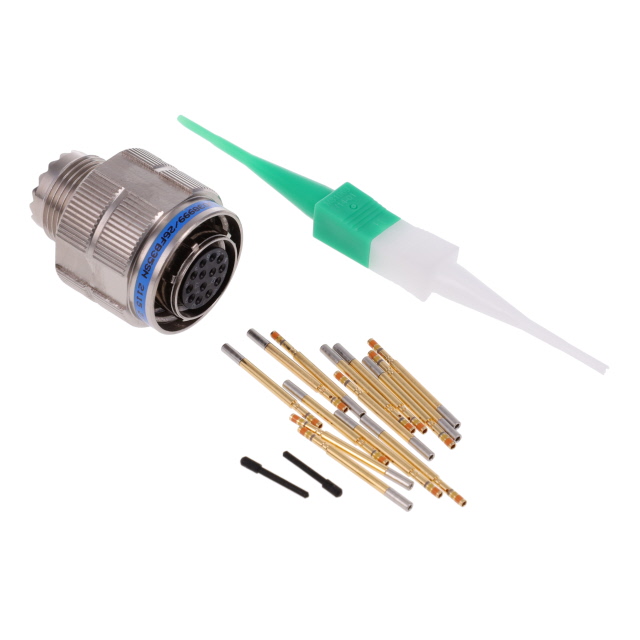

D38999/26FB35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 13POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26FB35SN

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 13POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26FB35SN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Electroless Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	11
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp

D38999/26FB Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Ingress Protection	Contact Material	Shielding	Shell Finish	Connector Type	Qualification	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, MIL	Color	Contact Finish - Mating	Grade	Orientation	Shell Material	Mounting Type	Number of Positions	Applications	Primary Material	Housing Color	Contact Shape	Contact Type	Contact Size	Type	Note	Shell Size - Insert	Insert Material
Amphenol Aerospace Operations D38999/26FB35P	1.27 µm	50 µin	11	35	Environment Resistant	Copper Alloy	Shielded	Electroless Nickel	Male Pins Plug	MIL-DTL-38999 Series III	Coupling Nut	Crimp	-65 ░C	200 °C	B	Silver	Gold	Military	N	Aluminum	Free Hanging (In-Line)	13	Aerospace Aviation Military	Metal
Amphenol Aerospace Operations D38999/26FB35JN	2.54 çm	100 çin	11	35	Environment Resistant	Copper Alloy	Shielded	Electroless Nickel	Female Sockets Plug	MIL-DTL-38999 Series III	Coupling Nut	Crimp	-65 ░C	200 °C	B	Silver	Gold	Military	N	Aluminum	Free Hanging (In-Line)	13	Aerospace Aviation Military	Metal
Amphenol Aerospace Operations D38999/26FB5AA					Environment Resistant		Shielded	Electroless Nickel	Plug Housing	MIL-DTL-38999 Series III	Coupling Nut Self Locking		-65 ░C	200 °C	B			Military	A	Aluminum	Free Hanging (In-Line)				Silver	Circular	Crimp	20	For Male Pins	Contacts Not Included	11-5
Amphenol Aerospace Operations D38999/26FB98PA-LC					Environment Resistant		Shielded	Electroless Nickel	Plug Housing	MIL-DTL-38999 Series III	Coupling Nut Self Locking		-65 ░C	200 °C	B			Military	A	Aluminum	Free Hanging (In-Line)	6			Silver	Circular	Crimp	20	For Male Pins	Contacts Not Included	11-98
Amphenol Aerospace Operations D38999/26FB35PA	1.27 µm	50 µin	11	35	Environment Resistant	Copper Alloy	Shielded	Electroless Nickel	Male Pins Plug	MIL-DTL-38999 Series III	Coupling Nut	Crimp	-65 ░C	200 °C	B	Silver	Gold	Military	A	Aluminum	Free Hanging (In-Line)	13	Aerospace Aviation Marine Military	Metal
Amphenol Aerospace Operations D38999/26FB98AA					Environment Resistant		Shielded	Electroless Nickel	Plug Housing	MIL-DTL-38999 Series III	Coupling Nut Self Locking		-65 ░C	200 °C	B			Military	A	Aluminum	Free Hanging (In-Line)	6		Metal	Silver	Circular	Crimp	20	For Male Pins	Contacts Not Included	11-98	Thermoplastic
Amphenol Aerospace Operations D38999/26FB5PA-LC					Environment Resistant		Shielded	Electroless Nickel	Plug Housing	MIL-DTL-38999 Series III	Coupling Nut Self Locking		-65 ░C	200 °C	B			Military	A	Aluminum	Free Hanging (In-Line)				Silver	Circular	Crimp	20	For Male Pins	Contacts Not Included	11-5
Amphenol Aerospace Operations D38999/26FB35HA	2.54 çm	100 çin	11	35	Environment Resistant	Copper Alloy	Shielded	Electroless Nickel	Male Pins Plug	MIL-DTL-38999 Series III	Coupling Nut Self Locking	Crimp	-65 ░C	200 °C	B	Silver	Gold	Military	A	Aluminum	Free Hanging (In-Line)	13	Aviation Marine Military	Metal
Amphenol Aerospace Operations D38999/26FB35SN	1.27 µm	50 µin	11	35	Environment Resistant	Copper Alloy	Shielded	Electroless Nickel	Female Sockets Plug	MIL-DTL-38999 Series III	Coupling Nut	Crimp	-65 ░C	200 °C	B	Silver	Gold	Military	N	Aluminum	Free Hanging (In-Line)	13	Aerospace Aviation Marine Military	Metal
Amphenol Aerospace Operations D38999/26FB2SN-LC					Environment Resistant		Shielded	Electroless Nickel	Plug Housing	MIL-DTL-38999 Series III	Coupling Nut Self Locking		-65 ░C	200 °C	B			Military	N	Aluminum	Free Hanging (In-Line)	2		Metal	Silver	Circular	Crimp	16	For Female Sockets	Contacts Not Included	11-2	Thermoplastic

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2604.23
		1	$ 124.22
		1	$ 300.99
		1	$ 55.38
		10	$ 113.99
		10	$ 236.31
		10	$ 47.99
		25	$ 109.61
		25	$ 215.92
		25	$ 42.35
		50	$ 37.89
		50	$ 105.96
		100	$ 33.23

Description

General part information

D38999/26FB Series

13 Position Circular Connector Plug, Female Sockets Crimp
