252103-75

Active

Amphenol RF

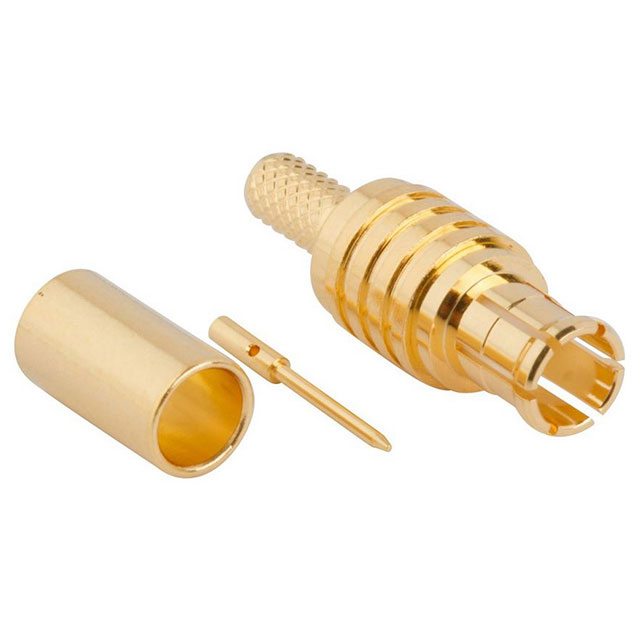

CONN MCX 0HZ TO 6GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN MCX 0HZ TO 6GHZ 75OHM CRIMP ST CABLE MOUNT PL GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	252103-75

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Connector Type	Housing Color	Connector Style	Shield Termination	Center Contact Plating	Fastening Type	Impedance	Contact Termination	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Body Material	Mating Cycles	Dielectric Material	Insertion Loss	Number of Ports	Body Finish	Mounting Type	Includes	Center Contact Material
Amphenol RF 252103-75	Male Pin Plug	Gold	MCX	Crimp	Gold	Snap-On	75 Ohms	Crimp	179A 179B 187 187A Belden 9221 M17/94-RG179 RG-179	-65 ░C	165 °C	6000 MHz	Beryllium Copper	500	Polytetrafluoroethylene (PTFE)	0.1 dB	1	Gold	Free Hanging (In-Line)	1 Connector 1 Contact 1 Ferrule	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MCX Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
