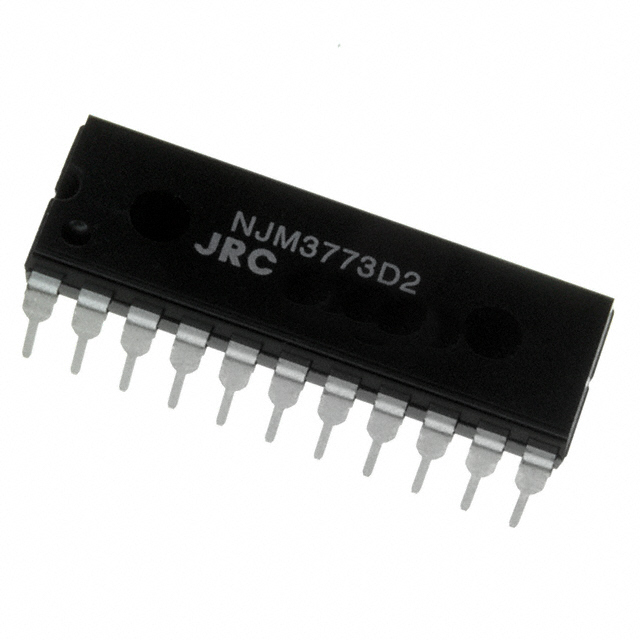

NJM3773D2

Obsolete

Nisshinbo Micro Devices Inc

IC MTRDRV BIPLR 4.75-5.25V 22DIP

Search across all available documentation for this part.

Obsolete

Nisshinbo Micro Devices Inc

IC MTRDRV BIPLR 4.75-5.25V 22DIP

Technical Specifications

Parameters and characteristics for this part

Specification	NJM3773D2

Applications	General Purpose
Current - Output	750 mA
Function	Driver - Fully Integrated, Control and Power Stage
Interface	Parallel
Motor Type - Stepper	Bipolar
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-20 °C
Output Configuration	Half Bridge (4)
Package / Case	10.16 mm
Package / Case	22-DIP
Package / Case	10.16 mm
Step Resolution	1, 0.5
Supplier Device Package	22-DIP
Technology	Bipolar
Voltage - Load [Max]	40 V
Voltage - Load [Min]	10 V
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Mounting Type	Step Resolution	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type - Stepper	Technology	Interface	Output Configuration	Applications	Package / Case	Function	Current - Output	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case
Nisshinbo Micro Devices Inc NJM3773FM2-TE3	Surface Mount	0.5 1	10 V	40 V	-20 °C	125 ¯C	Bipolar	Bipolar	Parallel	Half Bridge (4)	General Purpose	28-LCC (J-Lead)	Driver - Fully Integrated Control and Power Stage	750 mA	4.75 V	5.25 V	28-PLCC (11.51x11.51)
Nisshinbo Micro Devices Inc NJM3773E3	Surface Mount	0.5 1	10 V	40 V	-20 °C	125 ¯C	Bipolar	Bipolar	Parallel	Half Bridge (4)	General Purpose	24-SOIC	Driver - Fully Integrated Control and Power Stage	750 mA	4.75 V	5.25 V	24-SOP	7.5 mm	0.295 in
Nisshinbo Micro Devices Inc NJM3773D2	Through Hole	0.5 1	10 V	40 V	-20 °C	125 ¯C	Bipolar	Bipolar	Parallel	Half Bridge (4)	General Purpose	22-DIP	Driver - Fully Integrated Control and Power Stage	750 mA	4.75 V	5.25 V	22-DIP			10.16 mm	10.16 mm
Nisshinbo Micro Devices Inc NJM3773E3-TE2	Surface Mount	0.5 1	10 V	40 V	-20 °C	125 ¯C	Bipolar	Bipolar	Parallel	Half Bridge (4)	General Purpose	24-SOIC	Driver - Fully Integrated Control and Power Stage	750 mA	4.75 V	5.25 V	24-SOP	7.5 mm	0.295 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar Motor Driver Bipolar Parallel 22-DIP
