CDFV17W2213L211
ActiveMH Connectors
CONN D-SUB RCPT 17P PNL MNT SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CDFV17W2213L211
ActiveMH Connectors
CONN D-SUB RCPT 17P PNL MNT SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CDFV17W2213L211 |
|---|---|
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal and Power |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions [custom] | 15 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 17W2, 3 (DB, B) |
| Termination | Solder |
CDFV17W Series
| Part | Number of Rows | Connector Style | Contact Type | Termination | Connector Type | Flange Feature | Material Flammability Rating | Features | Shell Size, Connector Layout | Contact Finish Thickness | Ingress Protection | Shell Material, Finish | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Finish | Number of Positions [custom] | Number of Positions [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Male Pins Plug | Female Screwlock (4-40) Mating Side | UL94 V-0 | Board Lock Grounding Indents | 17W2 3 (DB B) | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | ||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Male Pins Plug | Female Screwlock (4-40) Mating Side | UL94 V-0 | Board Lock Grounding Indents | 17W2 3 (DB B) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | 0.76 Ám | 30 Áin | |
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | UL94 V-0 | 17W2 3 (DB B) | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | |||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Male Pins Plug | Female Screwlock (4-40) Mating Side | UL94 V-0 | Grounding Indents | 17W2 3 (DB B) | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | ||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | UL94 V-0 | 17W2 3 (DB B) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | 0.76 Ám | 30 Áin | ||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | UL94 V-0 | 17W2 3 (DB B) | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | 0.76 Ám | 30 Áin | ||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Male Pins Plug | Female Screwlock (4-40) Mating Side | UL94 V-0 | Board Lock Grounding Indents | 17W2 3 (DB B) | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | ||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | UL94 V-0 | 17W2 3 (DB B) | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | |||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Male Pins Plug | Female Screwlock (4-40) Mating Side | UL94 V-0 | Grounding Indents | 17W2 3 (DB B) | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole | ||
MH Connectors | 2 | Combo D-Sub | Signal and Power | Solder | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | UL94 V-0 | 17W2 3 (DB B) | Flash | IP67 - Dust Tight Waterproof | Nickel Plated Steel | Brass | -25 °C | 85 °C | Polybutylene Terephthalate (PBT) | Gold | 15 | 2 | Panel Mount Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 21.78 | |
| 10 | $ 16.78 | |||
| 25 | $ 15.19 | |||
| 40 | $ 14.45 | |||
| 80 | $ 13.44 | |||
| 230 | $ 12.08 | |||
| 440 | $ 11.35 | |||
Description
General part information
CDFV17W Series

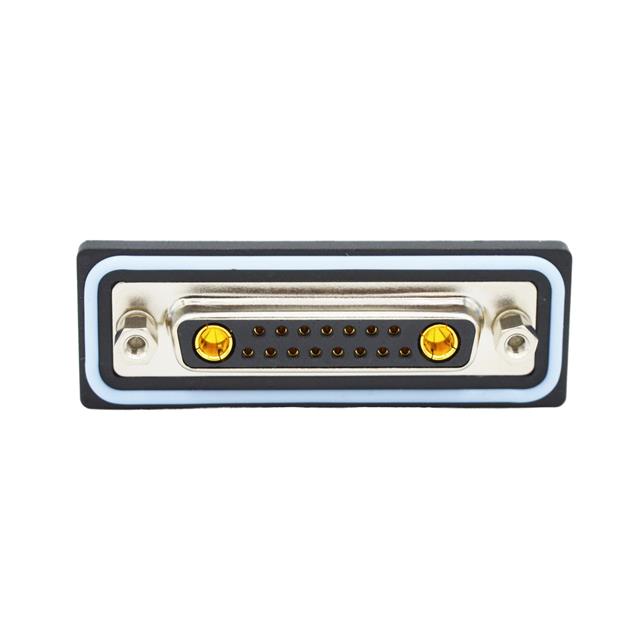

17 (15 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
