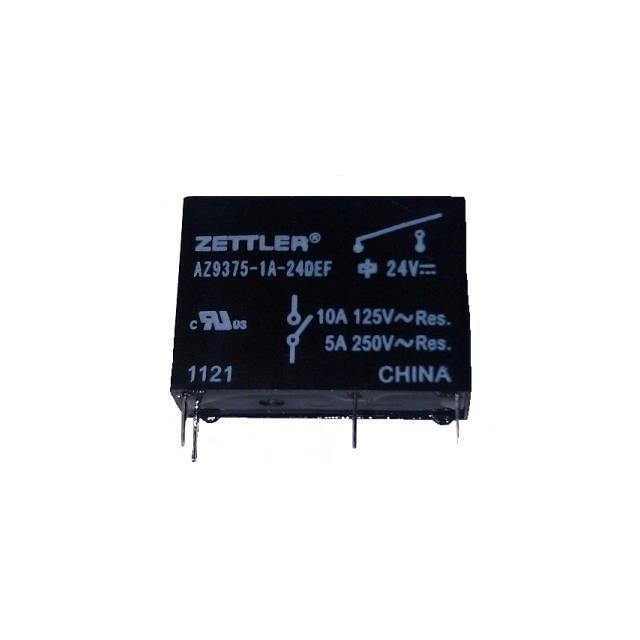

AZ9375-1A-5DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 10A 5V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ9375-1A-5DEF

Active

American Zettler

RELAY GEN PURPOSE SPST 10A 5V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ9375-1A-5DEF

Approval Agency	CSA, TUV, UL
Coil Current	40 mA
Coil Insulation	Class F
Coil Resistance	125 Ohms
Coil Type	Non Latching
Coil Voltage	5 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	10 A
Load - Max Switching	1250 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	3.75 VDC
Must Release Voltage	0.5 VDC
Operate Time	10 ms
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin

AZ9375-1A Series

Part	Mounting Type	Coil Voltage	Coil Current	Switching Voltage	Contact Form	Relay Type	Release Time	Seal Rating	Must Release Voltage	Load - Max Switching	Termination Style	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Contact Rating (Current)	Operate Time	Contact Material	Coil Insulation	Coil Type	Approval Agency
American Zettler AZ9375-1A-5DE	Through Hole	5 VDC	40 mA	30 VDC 277 VAC	SPST-NO (1 Form A)	General Purpose	4 ms	Sealed - Fully	0.5 VDC	150 W 1250 VA	PC Pin	125 Ohms	90 °C	-40 °C	3.75 VDC	10 A	10 ms	Silver Nickel (AgNi)	Class F	Non Latching	CSA TUV UL
American Zettler AZ9375-1A-5DEF	Through Hole	5 VDC	40 mA	30 VDC 277 VAC	SPST-NO (1 Form A)	General Purpose	4 ms	Sealed - Fully	0.5 VDC	150 W 1250 VA	PC Pin	125 Ohms	90 °C	-40 °C	3.75 VDC	10 A	10 ms	Silver Nickel (AgNi)	Class F	Non Latching	CSA TUV UL
American Zettler AZ9375-1A-9DEF	Through Hole	9 VDC	22.2 mA	30 VDC 277 VAC	SPST-NO (1 Form A)	General Purpose	4 ms	Sealed - Fully	0.9 VDC	150 W 1250 VA	PC Pin	405 Ohms	90 °C	-40 °C	6.75 VDC	10 A	10 ms	Silver Nickel (AgNi)	Class F	Non Latching	CSA TUV UL
American Zettler AZ9375-1A-24DF	Through Hole	24 VDC	8.6 mA	30 VDC 277 VAC	SPST-NO (1 Form A)	General Purpose	4 ms		2.4 VDC	150 W 1250 VA	PC Pin		90 °C	-40 °C	18 VDC	10 A	10 ms	Silver Nickel (AgNi)	Class F	Non Latching	CSA TUV UL
American Zettler AZ9375-1A-6DEF	Through Hole		33.3 mA	30 VDC 277 VAC	SPST-NO (1 Form A)	General Purpose	4 ms	Sealed - Fully	0.6 VDC	150 W 1250 VA	PC Pin	180 Ohms	90 °C	-40 °C	4.5 VDC	10 A	10 ms	Silver Nickel (AgNi)	Class F	Non Latching	CSA TUV UL
American Zettler AZ9375-1A-24DE	Through Hole	24 VDC	8.6 mA	30 VDC 277 VAC	SPST-NO (1 Form A)	General Purpose	4 ms	Sealed - Fully	2.4 VDC	150 W 1250 VA	PC Pin		90 °C	-40 °C	18 VDC	10 A	10 ms	Silver Nickel (AgNi)	Class F	Non Latching	CSA TUV UL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.30
		10	$ 1.16
		25	$ 1.11
		40	$ 1.08
		100	$ 1.04
		300	$ 0.98
		500	$ 0.95
		1000	$ 0.92
		4900	$ 0.85

Description

General part information

AZ9375-1A Series

General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
