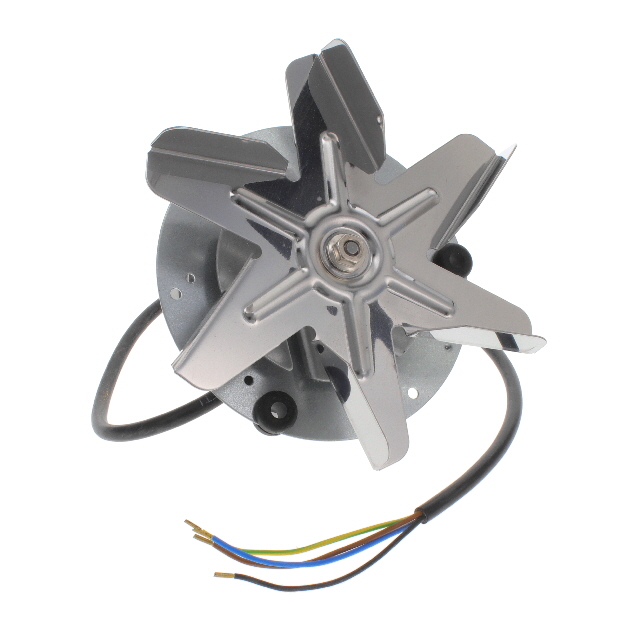

R2E150-AN89-14

Obsolete

ebm-papst Inc.

AC BACKWARD-CURVED MOTORIZED IMPELLER

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

AC BACKWARD-CURVED MOTORIZED IMPELLER

Technical Specifications

Parameters and characteristics for this part

Specification	R2E150-AN89-14

Approval Agency	UL, CSA, CE
Bearing Type	Ball
Fan Type	Motorized Impellers
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature	80 °C
Operating Temperature	80 °C
Power (Watts)	33 W
RPM	2550 RPM
Size / Dimension	Round
Size / Dimension [diameter]	152 mm
Termination	4 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC
Width	111.5 mm

Part	Material - Blade	Features	Width	Power (Watts)	Size / Dimension	Size / Dimension [diameter]	Fan Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Rated	Termination	Bearing Type	Operating Temperature	Operating Temperature	RPM
ebm-papst Inc. R2E150-AN89-11	Steel	Capacitor Thermal Overload Protector (TOP)	111.5 mm	40 W	Round	152 mm	Motorized Impellers	IP44	80 C	-25 °C	80 °C	-25 °C	CE CSA UL	115 VAC	1 Wire Lead with Ring Terminal 3 Wire Leads with QC Receptacles	Ball
ebm-papst Inc. R2E150-AN89-14	Steel	Capacitor Thermal Overload Protector (TOP)	111.5 mm	33 W	Round	152 mm	Motorized Impellers	IP44					CE CSA UL	115 VAC	4 Wire Leads with Splice Terminals	Ball	80 °C	80 °C	2550 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 155.06

General part information

Fan Motorized Impellers 115VAC Round - 152mm Dia Ball 4 Wire Leads with Splice Terminals

Technical documentation and resources

No documents available
