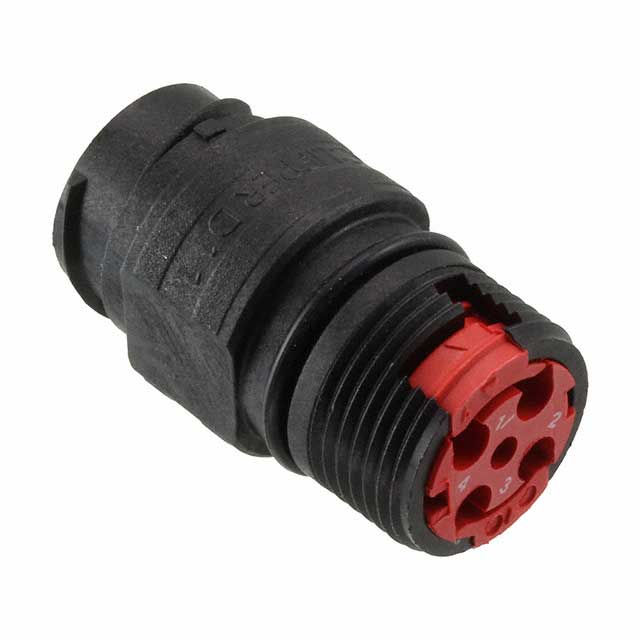

CL1D1101

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 4POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG FMALE 4POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	CL1D1101

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Housing Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shell Size - Insert	1-1
Shielding	Unshielded
Type	For Female Sockets

Part	Note	Shell Material	Contact Type	Contact Shape	Connector Type	Shielding	Type	Material Flammability Rating	Ingress Protection	Fastening Type	Number of Positions	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Orientation	Mounting Type	Contact Size	Insert Material
Souriau-Sunbank by Eaton CL1D1101	Contacts Not Included	Thermoplastic Halogen Free	Crimp and Solder Cup	Circular	Receptacle Housing	Unshielded	For Female Sockets	UL94 V-0	IP67 - Dust Tight Waterproof	Twist Latch	4	Black	125 °C	-40 °C	1-1	Keyed	Free Hanging (In-Line)	16	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
