T1235H8F

Active

SMC Diode Solutions

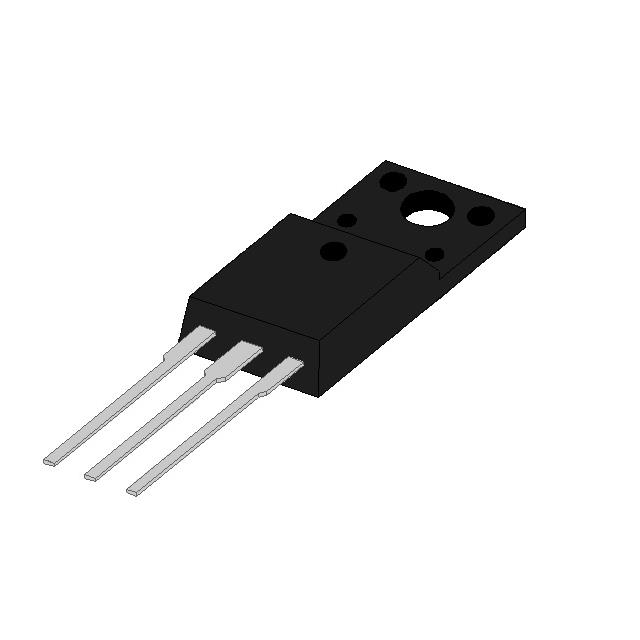

TRIAC 800V 12A TO220F

Search across all available documentation for this part.

Active

SMC Diode Solutions

TRIAC 800V 12A TO220F

Technical Specifications

Parameters and characteristics for this part

Specification	T1235H8F

Configuration	Single
Current - Gate Trigger (Igt) (Max) [Max]	35 mA
Current - Hold (Ih) (Max) [Max]	45 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	120 A
Current - On State (It (RMS)) (Max)	12 A
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220F
Triac Type	Standard
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.3 V
Voltage - Off State	800 V

Part	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	Triac Type	Current - Gate Trigger (Igt) (Max) [Max]	Voltage - Off State	Operating Temperature [Max]	Operating Temperature [Min]	Current - Hold (Ih) (Max) [Max]	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max)	Supplier Device Package	Configuration
SMC Diode Solutions T1235H8F	Through Hole	120 A	TO-220-3 Full Pack	Standard	35 mA	800 V	150 °C	-40 °C	45 mA	1.3 V	12 A	TO-220F	Single

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	5000	$ 0.55

General part information

TRIAC Standard 800 V 12 A Through Hole TO-220F
