05583.66.02

Active

Prysmian Group

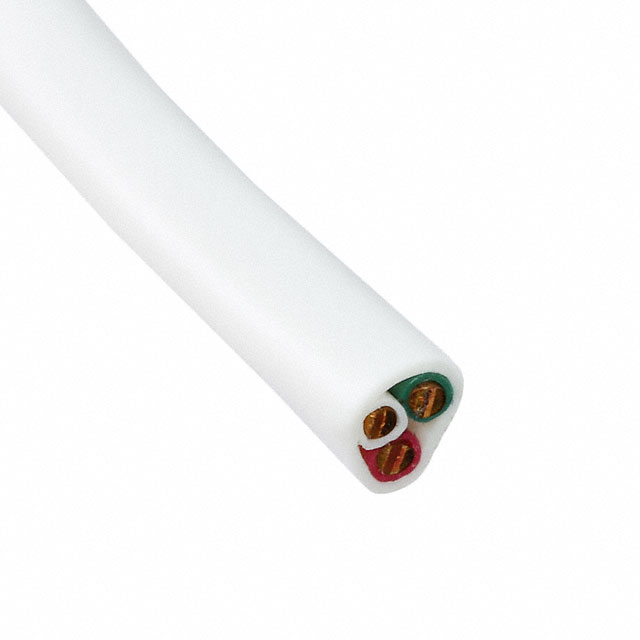

CABLE 3COND 18AWG WHITE 50'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 3COND 18AWG WHITE 50'

Technical Specifications

Parameters and characteristics for this part

Specification	05583.66.02

Cable Type	Multi-Conductor
Conductor Material	Copper, Bare
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	3.81 mm
Jacket (Insulation) Diameter [diameter]	0.15 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.203 mm
Jacket (Insulation) Thickness	0.008 in
Length	15.24 m
Length [x]	50 ft
Number of Conductors	3
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Thermostat
Voltage	150 V
Wire Gauge	18 AWG

Part	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Length [x]	Length [x]	Conductor Material	Jacket Color	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Wire Gauge	Cable Type	Jacket (Insulation) Material	Length
Prysmian Group 05583.18.08	Solid	-20 C	60 °C	3.81 mm	0.15 in	150 V	500 '	152.4 m	Copper Bare	Brown	3	0.203 mm	0.008 in	Thermostat	18 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)
Prysmian Group 05583.66.02	Solid	-20 C	60 °C	3.81 mm	0.15 in	150 V	50 ft		Copper Bare		3	0.203 mm	0.008 in	Thermostat	18 AWG	Multi-Conductor	Poly-Vinyl Chloride (PVC)	15.24 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

3 Conductor Multi-Conductor Cable White 18 AWG 50.00' (15.24m)

Technical documentation and resources

No documents available
