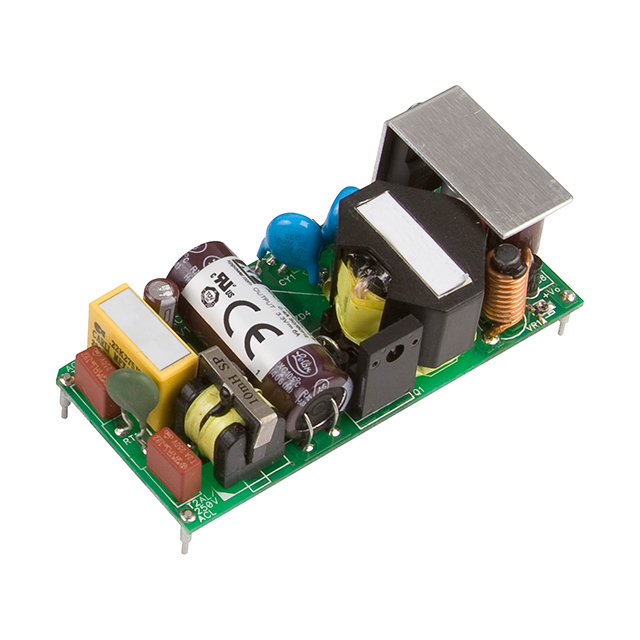

EML30US48-P
ActiveAC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 30 W, 48 V, 620 MA
Deep-Dive with AI
Search across all available documentation for this part.
EML30US48-P
ActiveAC/DC PCB MOUNT POWER SUPPLY (PSU), 1 OUTPUT, 30 W, 48 V, 620 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EML30US48-P |
|---|---|
| Applications | Medical |
| Approval Agency | UL, TUV, CB |
| Current - Output (Max) [Max] | 620 mA |
| Efficiency | 87 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 75.2 mm |
| Size / Dimension [x] | 2.96 in |
| Size / Dimension [y] | 1.36 " |
| Size / Dimension [y] | 34.6 mm |
| Size / Dimension [z] | 1.05 " |
| Size / Dimension [z] | 26.7 mm |
| Standard Number | 60601-1 |
| Type | Open Frame |
| Voltage - Output 1 | 48 V |
| Weight | 58.97 g |
| Weight | 0.13 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EML30US48 Series
The EML30 is a series of open frame and encapsulated AC-DC single output power supplies designed for medical applications. The series provides a number of flexible mechanical options including PCB mount, open frame, chassis mount with screw terminals and a DIN Rail option. With approvals to world-wide medical safety standards, compliance with class B for both conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into the latest healthcare products and applications.
