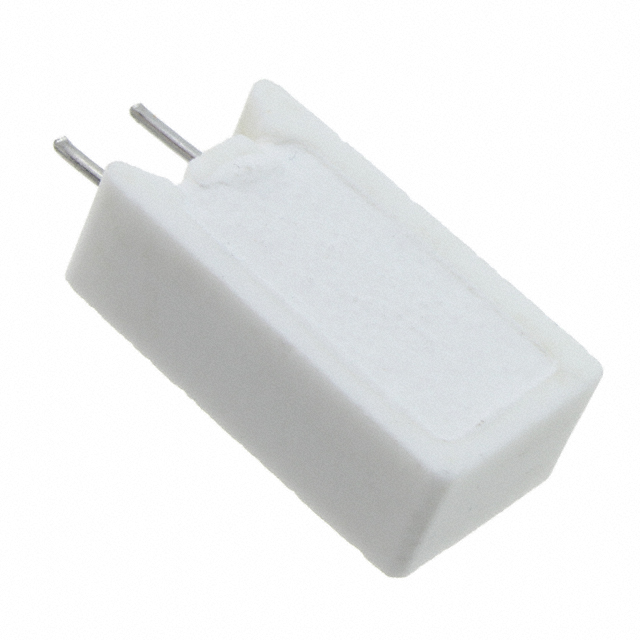

SQMW310RJ

Active

TE Connectivity Passive Product

RES 10 OHM 5% 3W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 10 OHM 5% 3W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SQMW310RJ

Composition	Wirewound
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	0.984 "
Height - Seated (Max) [Max] [z]	25 mm
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	3 W
Resistance	10 Ohms
Size / Dimension [x]	12 mm
Size / Dimension [x]	0.472 in
Size / Dimension [y]	8 mm
Size / Dimension [y]	0.315 in
Supplier Device Package	Radial Lead
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Composition	Power (Watts)	Number of Terminations	Resistance	Supplier Device Package	Temperature Coefficient	Package / Case
TE Connectivity Passive Product SQMW310RJ	-55 °C	250 °C	5 %	12 mm	8 mm	0.315 in	0.472 in	Flame Proof Moisture Resistant Safety	0.984 "	25 mm	Wirewound	3 W	2	10 Ohms	Radial Lead	300 ppm/°C	Radial
TE Connectivity Passive Product SQMW3R20J	-55 °C	250 °C	5 %	12 mm	8 mm	0.315 in	0.472 in	Flame Proof Moisture Resistant Safety	1.024 in	26 mm	Wirewound	3 W	2	200 mOhms		300 ppm/°C	Radial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Ohms ±5% 3W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Wirewound
