684M21WA4PL621 - 684M21WA4PL621

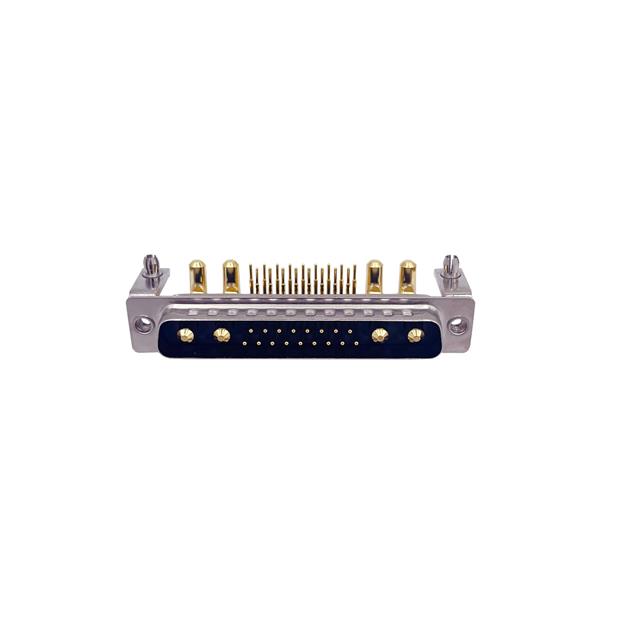

684M21WA4PL621

Active
MH Connectors

COMBO D-SUB CONN, PLUG, DC-21WA4, TH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet3D Product Image EN+2
684M21WA4PL621 - 684M21WA4PL621

684M21WA4PL621

Active
MH Connectors

COMBO D-SUB CONN, PLUG, DC-21WA4, TH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet3D Product Image EN+2

Technical Specifications

Parameters and characteristics for this part

Specification684M21WA4PL621
Backset Spacing9.4 mm
Backset Spacing0.37 in
ColorBlack
Connector StyleD-Sub, Combo
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialCopper Alloy
Contact TypeSignal and Power
Current Rating (Amps)40 A, 5 A
Dielectric MaterialPolybutylene Terephthalate (PBT)
FeaturesGrounding Indents, Mounting Brackets, Board Lock
Flange FeatureHousing/Shell (4-40)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle, Board Edge
Number of Positions [custom]17
Number of Positions [custom]4
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout21WA4, 4 (DC, C)
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 19.63
10$ 16.68
40$ 15.12
80$ 14.40
120$ 14.00
280$ 13.19
520$ 12.62
NewarkEach 1$ 20.80
5$ 19.41
10$ 18.02
25$ 17.09
50$ 16.84

Description

General part information

684M21W Series

21 (17 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
