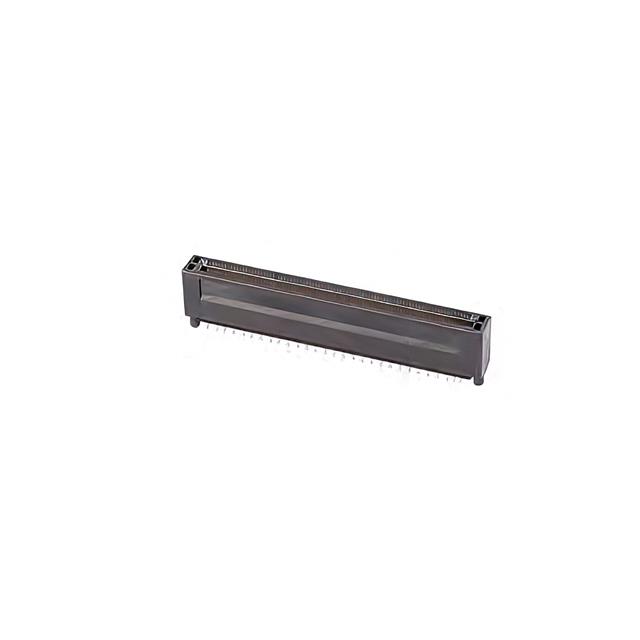

10084423-102LF

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 30POS 0.031

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN EDGE DUAL FMALE 30POS 0.031

Technical Specifications

Parameters and characteristics for this part

Specification	10084423-102LF

Card Thickness	0.039 in
Card Thickness	1 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	30
Number of Positions/Bay/Row [custom]	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Read Out	Dual
Termination	Solder

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Material - Insulation	Number of Positions/Bay/Row [custom]	Mounting Type	Card Type	Termination	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Read Out	Color	Features	Card Thickness	Card Thickness
Amphenol ICC (FCI) 10084423-902LF	Gold or Gold GXT™	0.76 Ám	30 Áin	Copper Alloy	Liquid Crystal Polymer (LCP)	15	Surface Mount Right Angle	Non Specified - Dual Edge	Solder	2	30	0.8 mm	0.031 in	85 °C	-40 °C	Female	Dual	Black	Board Guide	0.039 in	1 mm
Amphenol ICC (FCI) 10084423-901LF	Gold or Gold GXT™	0.76 Ám	30 Áin	Copper Alloy	Liquid Crystal Polymer (LCP)	10	Surface Mount Right Angle	Non Specified - Dual Edge	Solder	2	20	0.8 mm	0.031 in	85 °C	-40 °C	Female	Dual	Black	Board Guide	0.039 in	1 mm
Amphenol ICC (FCI) 10084423-103LF	Gold	0.76 Ám	30 Áin	Copper Alloy	Liquid Crystal Polymer (LCP)	35	Surface Mount Right Angle	Non Specified - Dual Edge	Solder	2	70	0.8 mm	0.031 in	85 °C	-40 °C	Female	Dual	Black	Board Guide	0.039 in	1 mm
Amphenol ICC (FCI) 10084423-102LF	Gold	0.76 Ám	30 Áin	Copper Alloy	Liquid Crystal Polymer (LCP)	15	Surface Mount Right Angle	Non Specified - Dual Edge	Solder	2	30	0.8 mm	0.031 in	85 °C	-40 °C	Female	Dual	Black	Board Guide	0.039 in	1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	480	$ 2.53

General part information

30 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
