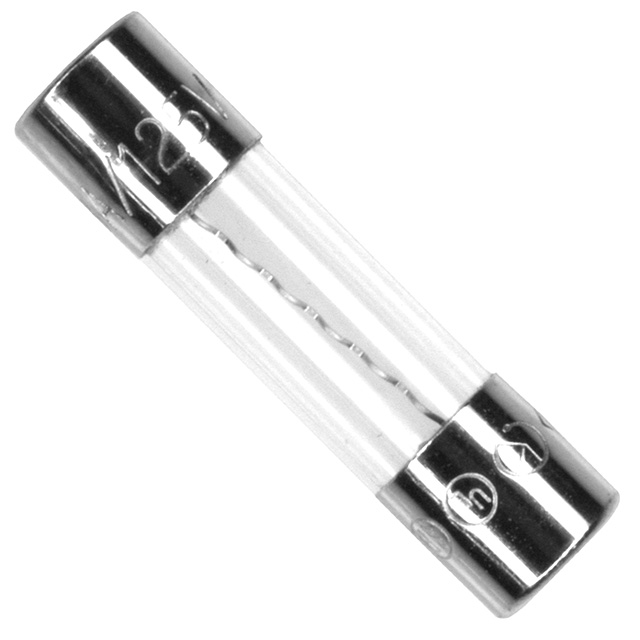

0233006.MXBP
ActiveLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, MEDIUM BLOW, 6A, 125VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
0233006.MXBP
ActiveLittelfuse/Commercial Vehicle Products
ELECTRIC FUSE, MEDIUM BLOW, 6A, 125VAC, 10000A (IR), INLINE/HOLDER, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0233006.MXBP |
|---|---|
| Approval Agency | CE, UL, CSA, PSE, KC |
| Current Rating (Amps) | 6 A |
| DC Cold Resistance | 0.0179 Ohms |
| Melting I²t | 131.455 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Medium Blow |
| Size / Dimension [diameter] | 5.2 mm |
| Size / Dimension [diameter] | 0.205 in |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0233006 Series
5x20mm medium- acting glass body fuse designed to UL specification.
