S-75V00ANC-5V1-TFG

ABLIC Inc.

IC GATE NAND 1CH 2-INP SC88A

Search across all available documentation for this part.

ABLIC Inc.

IC GATE NAND 1CH 2-INP SC88A

Technical Specifications

Parameters and characteristics for this part

Specification	S-75V00ANC-5V1-TFG

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Current - Quiescent (Max) [Max]	1 çA
Input Logic Level - High	1.5 V
Input Logic Level - Low	0.5 V
Logic Type	NAND Gate
Max Propagation Delay @ V, Max CL	8.5 ns
Mounting Type	Surface Mount
Number of Circuits	1
Number of Inputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

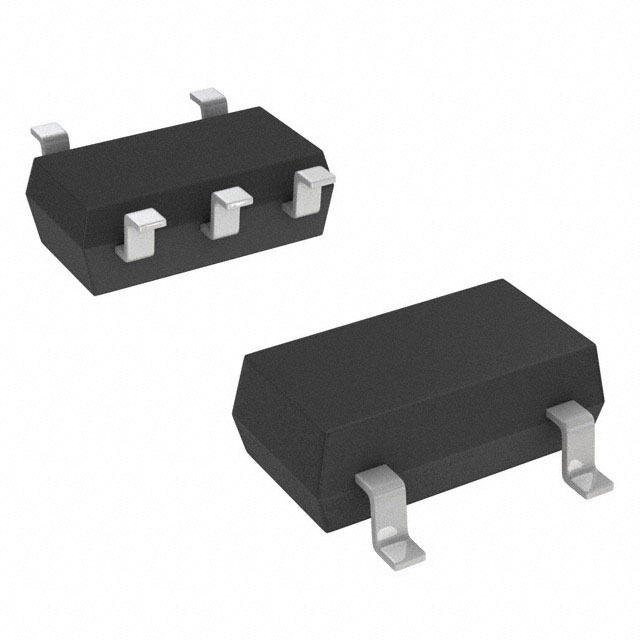

Package / Case	SC-70-5, 5-TSSOP, SOT-353
Supplier Device Package	SC88A-B-PKG
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

Part	Logic Type	Input Logic Level - Low	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case	Current - Quiescent (Max) [Max]	Max Propagation Delay @ V, Max CL	Mounting Type	Input Logic Level - High	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Circuits	Operating Temperature [Max]	Operating Temperature [Min]	Number of Inputs
ABLIC Inc. S-75V00ANC-5V1-TFG	NAND Gate	0.5 V	8 mA	8 mA	5-TSSOP SC-70-5 SOT-353	1 çA	8.5 ns	Surface Mount	1.5 V	SC88A-B-PKG	5.5 V	2 V	1	85 °C	-40 °C	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NAND Gate IC 1 Channel SC88A-B-PKG

Technical documentation and resources

No documents available
