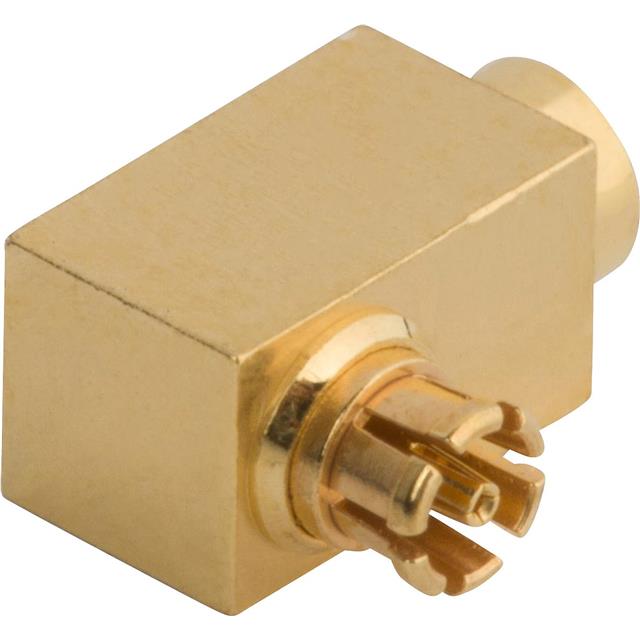

3822-40001

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, SMPS COAXIAL, RIGHT ANGLE JACK, SOLDER, 50 OHM, 0.047" FLEXIBLE

Search across all available documentation for this part.

Active

Amphenol SV Microwave

RF / COAXIAL CONNECTOR, SMPS COAXIAL, RIGHT ANGLE JACK, SOLDER, 50 OHM, 0.047" FLEXIBLE

Technical Specifications

Parameters and characteristics for this part

Specification	3822-40001

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	Flexible
Cable Group	0.047 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPS
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1

Part	Number of Ports	Cable Group	Cable Group	Body Finish	Mounting Type	Fastening Type	Body Material	Center Contact Material	Connector Style	Frequency - Max [Max]	Dielectric Material	Connector Type	Impedance	Contact Termination	Housing Color	Center Contact Plating
Amphenol SV Microwave 3822-40001	1	Flexible	0.047 in	Gold	Free Hanging (In-Line) Right Angle	Snap-On	Beryllium Copper	Beryllium Copper	SMPS	40 GHz	Polytetrafluoroethylene (PTFE)	Female Socket Jack	50 Ohms	Solder	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMPS Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
