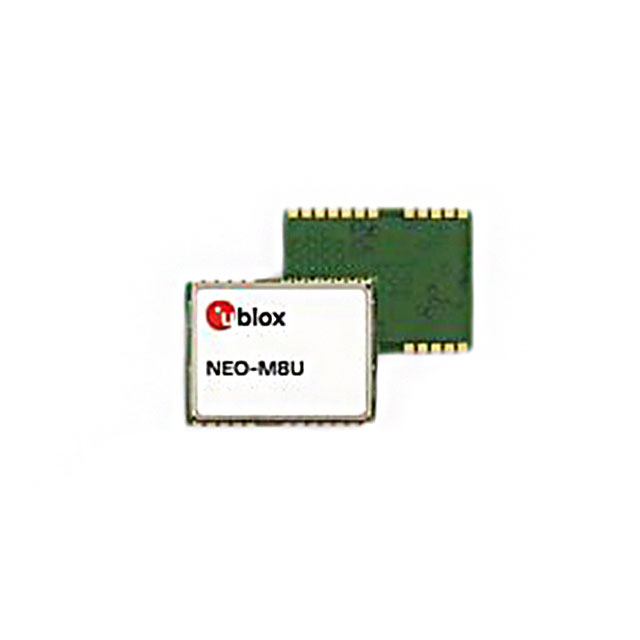

NEO-M8U-05B

Obsolete

u-blox

RF RCVR GNSS/GPS 1.575GHZ 24LCC

Search across all available documentation for this part.

Obsolete

u-blox

RF RCVR GNSS/GPS 1.575GHZ 24LCC

Technical Specifications

Parameters and characteristics for this part

Specification	NEO-M8U-05B

Applications	General Purpose
Current - Receiving	29 mA
Data Interface	UART, SPI, I2C, USB
Frequency	1.575 GHz
Modulation or Protocol	GNSS, Galileo, BeiDou, GLONASS, GPS
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-SMD Module
Sensitivity	-160 dBm
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

Part	Applications	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensitivity	Modulation or Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Interface	Mounting Type	Frequency
u-blox NEO-M8N-0	General Purpose	21 mA	85 °C	-40 °C	24-SMD Module	-167 dBm	BeiDou Galileo GLONASS GNSS GPS	1.65 V	3.6 V	I2C SPI UART USB	Surface Mount	1.575 GHz
u-blox NEO-M8Q-0	General Purpose	21 mA	85 °C	-40 °C	24-SMD Module	-167 dBm	BeiDou Galileo GLONASS GNSS GPS	2.7 V	3.6 V	I2C SPI UART USB	Surface Mount	1.575 GHz
u-blox NEO-M8U-05B	General Purpose	29 mA	85 °C	-40 °C	24-SMD Module	-160 dBm	BeiDou Galileo GLONASS GNSS GPS	2.7 V	3.6 V	I2C SPI UART USB	Surface Mount	1.575 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

NEO-M8U RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.575GHz -160dBm
