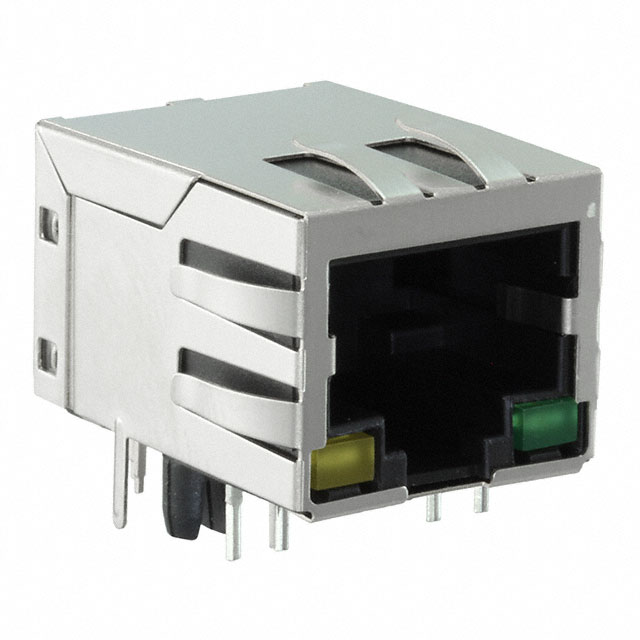

AJT33L8813-014

Active

METZ CONNECT USA Inc.

MODULAR JACK, 8/8, SHIELDED, RIG

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

MODULAR JACK, 8/8, SHIELDED, RIG

Technical Specifications

Parameters and characteristics for this part

Specification	AJT33L8813-014

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Housing Material	Polyester, Polybutylene Terephthalate (PBT), Glass Filled
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Contact Finish	Number of Ports	Housing Material	LED Color	Mounting Type	Connector Type	Termination	Number of Positions/Contacts	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Orientation	Number of Rows	Shielding
METZ CONNECT USA Inc. AJT33L8813-014	Gold	1	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Yellow - Green	Through Hole	Jack	Solder	8p8c (RJ45 Ethernet)	Phosphor Bronze	0.76 Ám	30 Áin	Down	90 °	1	Shielded EMI Finger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
