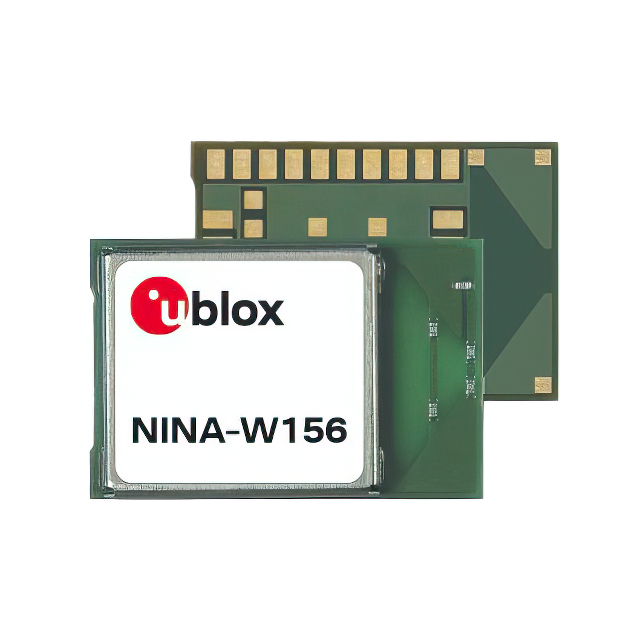

NINA-W156-04B
Activeu-blox
RF TXRX MOD BT ISM>1GHZ I TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NINA-W156-04B
Activeu-blox
RF TXRX MOD BT ISM>1GHZ I TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NINA-W156-04B |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving [Max] | 125 mA |
| Current - Receiving [Min] | 110 mA |
| Current - Transmitting [Max] | 170 mA |
| Current - Transmitting [Min] | 120 mA |
| Data Rate | 54 Mbps |
| Frequency [Max] | 2.48 GHz |
| Frequency [Min] | 2.4 GHz |
| Memory Size [custom] | 2 MB |
| Memory Size [custom] | 0.5 MB |
| Modulation | DSSS, OFDM, CCK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 36-SMD Module |
| Power - Output | 18 dBm |
| Protocol | Bluetooth v4.2, 802.11b/g/n |
| RF Family/Standard | General ISM > 1GHz, Bluetooth, WiFi |
| Serial Interfaces | SPI, SDIO, UART |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 13.04 | |
| 10 | $ 11.74 | |||
| 50 | $ 10.57 | |||
| 100 | $ 10.12 | |||
| Digi-Reel® | 1 | $ 13.04 | ||
| 10 | $ 11.74 | |||
| 50 | $ 10.57 | |||
| 100 | $ 10.12 | |||
| Tape & Reel (TR) | 500 | $ 9.51 | ||
Description
General part information
NINA-W156 Series
Bluetooth, General ISM > 1GHz, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz ~ 2.48GHz PCB Trace Surface Mount
