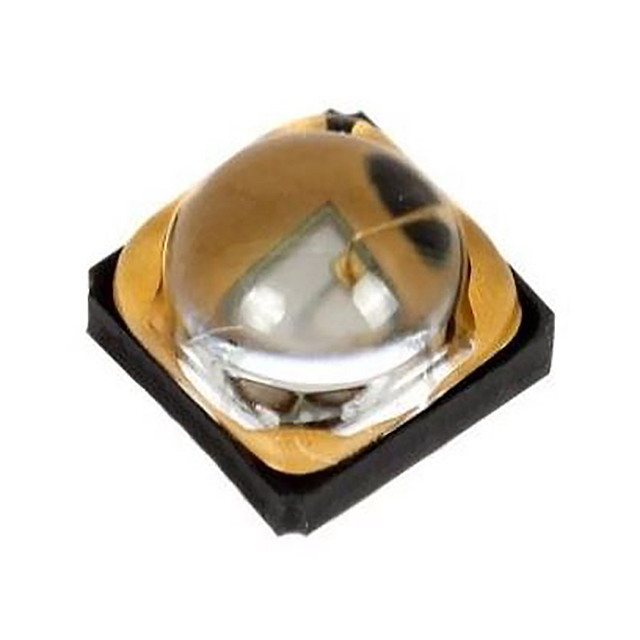

CUN0GB1A
ActiveSETi/Seoul Viosys
405NM CA3535_DOME PACKAGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CUN0GB1A
ActiveSETi/Seoul Viosys
405NM CA3535_DOME PACKAGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CUN0GB1A |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 1.4 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -10 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Type | Ultraviolet (UV) |
| Viewing Angle | 62.5 ° |
| Voltage - Forward (Vf) (Typ) | 3.6 V |
| Wavelength | 405 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.28 | |
| 10 | $ 6.30 | |||
| 100 | $ 5.15 | |||
| Digi-Reel® | 1 | $ 8.28 | ||
| 10 | $ 6.30 | |||
| 100 | $ 5.15 | |||
| Tape & Reel (TR) | 500 | $ 4.54 | ||
| 1000 | $ 4.38 | |||
| 1500 | $ 4.29 | |||
Description
General part information
CUN0GB1 Series
Ultraviolet (UV) Emitter 405nm 3.6V 1.4A 62.5° 1414 (3535 Metric)
