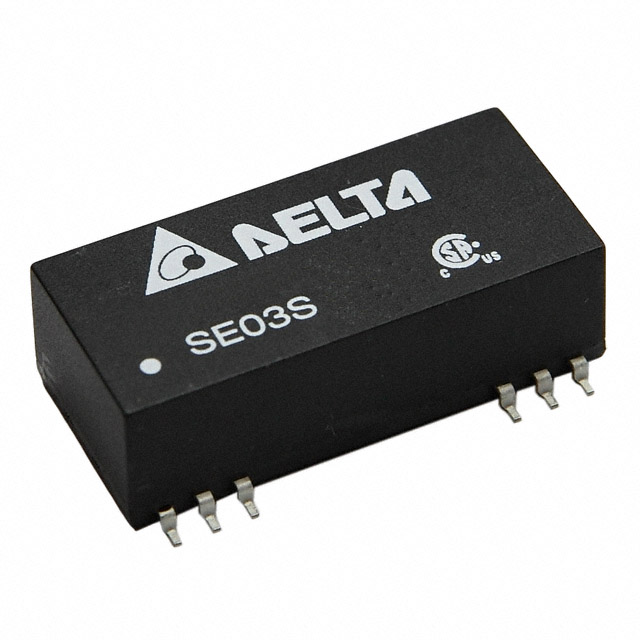

SE03S2403A

Obsolete

Delta Electronics

DC DC CONVERTER 3.3V 3W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 3.3V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Voltage - Input (Min) [Min]	Voltage - Isolation	Power (Watts)	Type	Voltage - Output 1	Features	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Mounting Type	Applications
Delta Electronics SE03S1203A	1	24-SMD Module 12 Leads	18 V	-40 °C	71 °C	75 %	9 V	1.5 kV	3 W	Isolated Module	3.3 V	SCP UVLO	700 mA	0.74 in	0.4 "	1.27 in	18.8 mm	10.2 mm	32.3 mm	Surface Mount	Medical
Delta Electronics SE03S2403A	1	24-SMD Module 12 Leads	36 V	-40 °C	71 °C	76 %	18 V	1.5 kV	3 W	Isolated Module	3.3 V	SCP UVLO	700 mA	0.74 in	0.4 "	1.27 in	18.8 mm	10.2 mm	32.3 mm	Surface Mount	Medical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 700mA 18V - 36V Input
