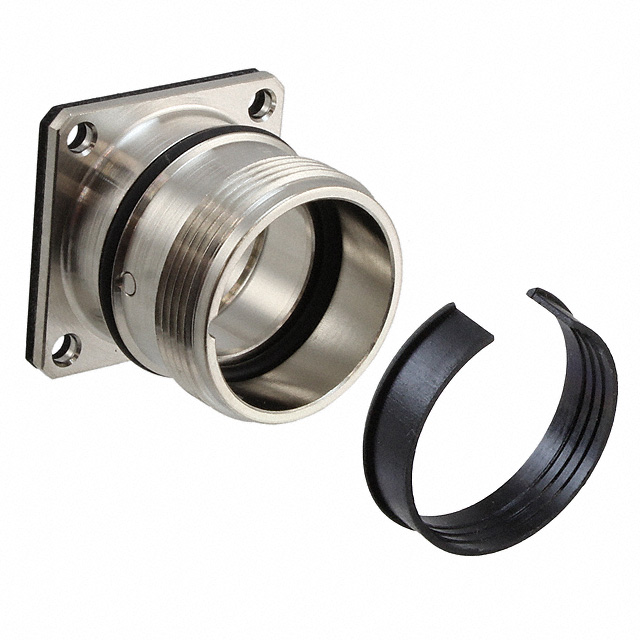

1593021

Active

Phoenix Contact

CIRCULAR METRIC CONNECTORS RC-0000000WQ00

Search across all available documentation for this part.

Active

Phoenix Contact

CIRCULAR METRIC CONNECTORS RC-0000000WQ00

Technical Specifications

Parameters and characteristics for this part

Specification	1593021

Connector Type	Insert Shell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Note	Contacts Not Included; Insert Not Included
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-20 C
Shell Material	Gadolinium-Zinc
Shell Size - Insert	M23
Shielding	Shielded

Circular Metric Connectors RC-06P1Y8A1L00

Part	Contact Finish	Contact Termination	Contact Type	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Size	Type	Mounting Feature	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shielding	Shell Material	Ingress Protection	Shell Size - Insert	Note	Termination	Insert Material	Features	Contact Finish - Mating	Number of Positions	Orientation	Contact Material	Accessory Type	Color	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Number of Positions [custom]	Number of Positions [custom]
Phoenix Contact 1603805	Gold	Crimp	Socket	0.75 mm²	1 mm²	1.5 mm	Machined Signal
Phoenix Contact 1593021								Flange	Silver	-20 C	125 °C	Insert Shell	Shielded	Gadolinium-Zinc	IP67 - Dust Tight Waterproof	M23	Contacts Not Included; Insert Not Included
Phoenix Contact 1600231												Female Sockets Insert						Crimp	Polyamide (PA66) Nylon 6/6	Insert Only Requires Shell	Gold	12	N	Copper Zinc
Phoenix Contact 1604465																				Shielded					Clamp Cage with Shield Adapter	Black
Phoenix Contact 1596770	Gold	Crimp	Pin			1 mm	Machined Signal																				0.08 mm˛	0.22 mm˛
Phoenix Contact 1603668												Female Sockets Insert							Polybutylene Terephthalate (PBT)	Insert Only Requires Shell	Gold		N	Copper Zinc					3	6
Phoenix Contact 1598295												Insert Male Pins						Crimp	Polyamide (PA66) Nylon 6/6	Insert Only Requires Shell	Gold	12	N	Copper Zinc
