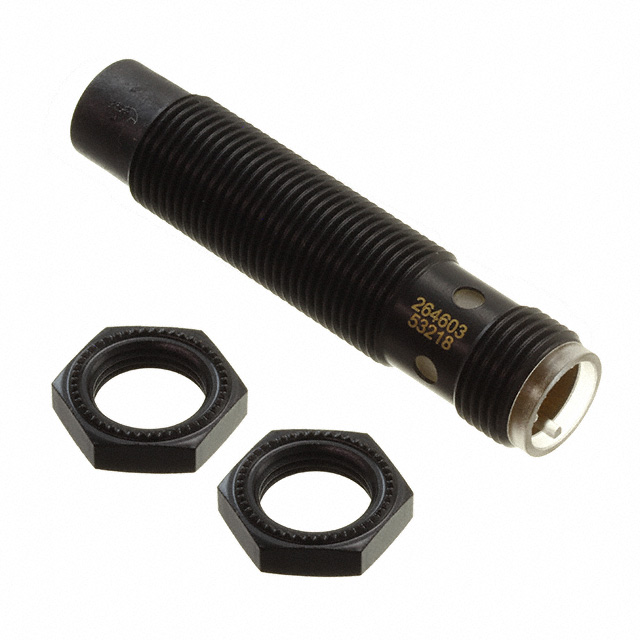

NRN10-12GM40-E2-C-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 10MM PNP

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 10MM PNP

Technical Specifications

Parameters and characteristics for this part

Specification	NRN10-12GM40-E2-C-V1

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polytetrafluoroethylene (PTFE)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M12
Sensing Distance	0.394 in
Sensing Distance	10 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Package / Case	Sensor Type	Sensing Distance	Sensing Distance	Material - Body	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Shielding	Indicator [custom]	Output Type
PEPPERL+FUCHS NRN10-12GM40-E2-C-V1	70 °C	-25 °C	Connector	Cylinder Threaded - M12	Inductive	0.394 in	10 mm	Polytetrafluoroethylene (PTFE)	30 VDC	10 VDC	IP67	Unshielded	LED	PNP-NO 3-Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 10MM PNP
