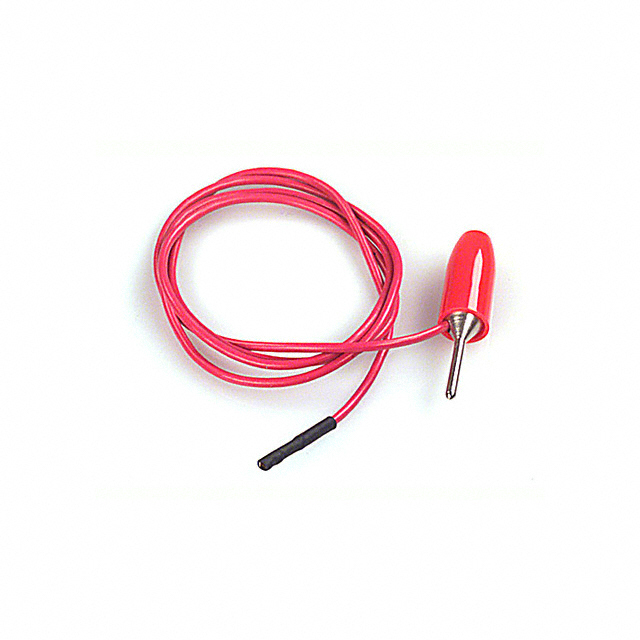

9171-24 RED
ActiveE-Z-Hook
TEST LEAD TIP PLUG TO SOCKET 24"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9171-24 RED
ActiveE-Z-Hook
TEST LEAD TIP PLUG TO SOCKET 24"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9171-24 RED |
|---|---|
| 1st Connector | Tip Plug, Stackable |
| 2nd Connector | Socket, Square |
| 2nd Connector | 0.64 mm |
| 2nd Connector | 0.025 in |
| Cable Length | 24 " |
| Cable Length | 609.6 mm |
| Configuration | Pin Tip to Socket |
| Contents | Red |
| Contents [custom] | 1 |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.78 | |
| 100 | $ 7.00 | |||
| 250 | $ 6.23 | |||
| 500 | $ 5.68 | |||
Description
General part information
9171-24 Series
24.0" (609.60mm) Tip Plug, Stackable To Socket, Square, 0.025" (0.64mm) Test Lead 1 Lead, Red
