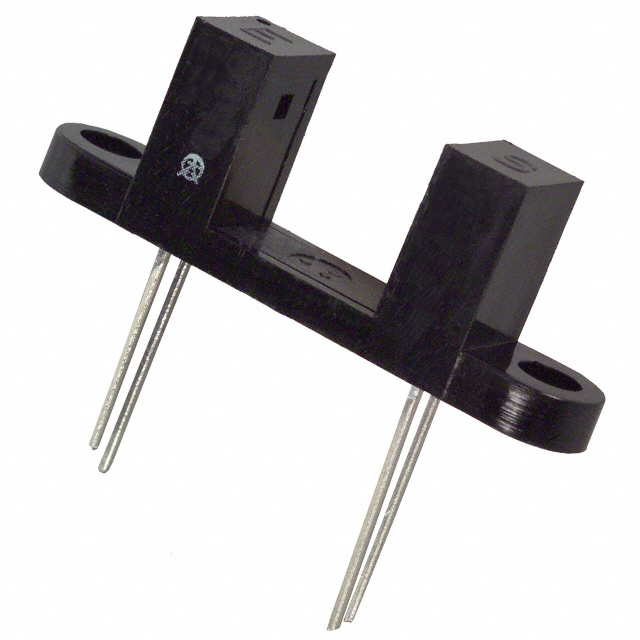

OPB800L55

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRAN PCB MT

Technical Specifications

Parameters and characteristics for this part

Specification	OPB800L55

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	PCB Mount
Sensing Distance	9.53 mm
Sensing Distance	0.375 in
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Type	Current - DC Forward (If) (Max)	Current - Collector (Ic) (Max) [Max]	Mounting Type	Package / Case	Sensing Distance	Sensing Distance	Sensing Method	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Output Configuration
TT Electronics/Optek Technology OPB800W55Z	Unamplified	50 mA	30 mA	Chassis Mount	Module Pre-Wired	9.53 mm	0.375 in	Through-Beam	-40 °C	80 C	30 V	Phototransistor
TT Electronics/Optek Technology OPB800L55	Unamplified	50 mA	30 mA	Through Hole	PCB Mount	9.53 mm	0.375 in	Through-Beam	-40 °C	85 °C	30 V	Phototransistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor Through-Beam 0.375" (9.53mm) Phototransistor PCB Mount
