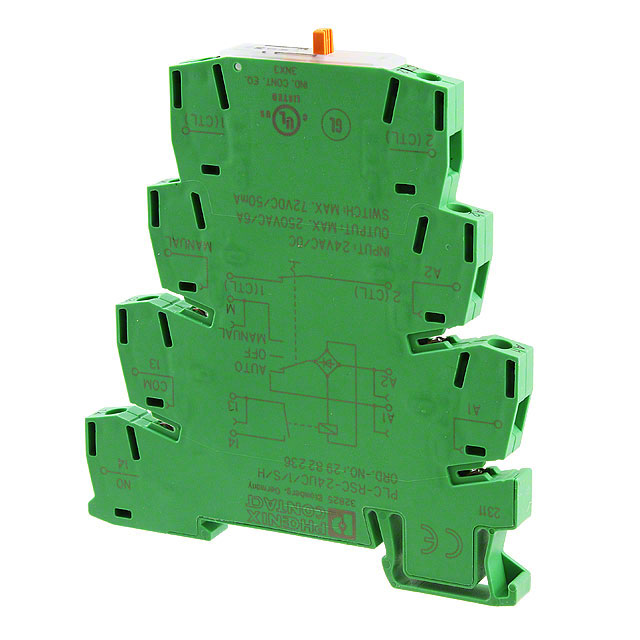

2982236

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 6A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2982236

Approval Agency	UKCA, CE
Coil Current	11 mA
Coil Resistance	2.182 kOhms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	6 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Relay Type	General Purpose
Release Time	15 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Features	Operating Temperature [Min]	Operating Temperature [Max]	Coil Type	Termination Style	Approval Agency	Coil Current	Contact Rating (Current)	Coil Voltage	Mounting Type	Coil Resistance	Contact Form	Release Time	Relay Type	Operate Time	Switching Voltage
Phoenix Contact 2982236	Lighted Indicator Socket Included	-20 C	60 °C	Non Latching	Screw Terminal	CE UKCA	11 mA	6 A	24 VAC	DIN Rail	2.182 kOhms	SPST-NO (1 Form A)	15 ms	General Purpose	6 ms	250 VAC 250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VAC/DC Coil DIN Rail
