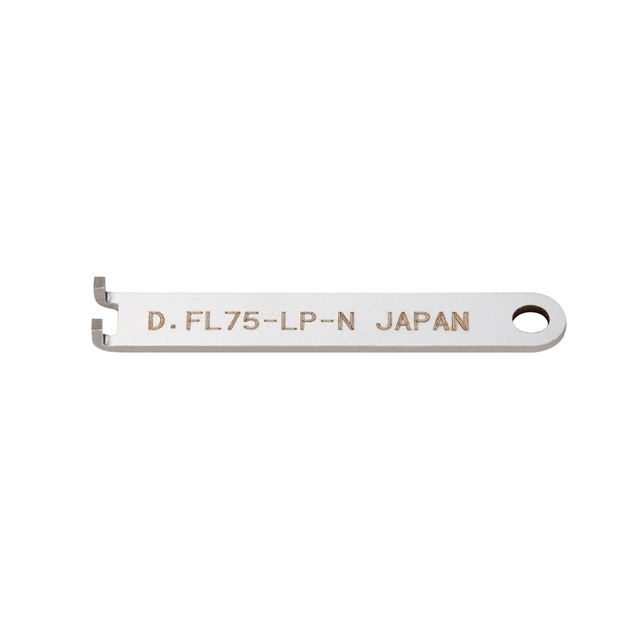

D.FL75-LP-N

Active

Hirose Electric USA, Inc.

TOOL EXTRACT D.FL75

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

TOOL EXTRACT D.FL75

Technical Specifications

Parameters and characteristics for this part

Specification	D.FL75-LP-N

For Use With/Related Products	Coaxial, RF Connectors
Tool Type	Extraction Tool

Part	For Use With/Related Products	Tool Type	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Fastening Type	Contact Termination	Frequency - Max [Max]	Mounting Type	Dielectric Material	Impedance	Body Finish	Body Material	Mating Cycles	Connector Style	Number of Ports	Connector Type	Housing Color	Shield Termination
Hirose Electric USA, Inc. D.FL75-LP-N	Coaxial RF Connectors	Extraction Tool
Hirose Electric USA, Inc. D.FL75-R-SMT-1(40)			Phosphor Bronze	-40 °C	105 ░C	Gold	Snap-On	Solder	12 GHz	Surface Mount	Liquid Crystal Polymer (LCP)	75 Ohms	Gold	Phosphor Bronze	20	D.FL	1	Male Pin Receptacle	Gold	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Extraction Tool For Coaxial, RF Connectors

Technical documentation and resources

No documents available
