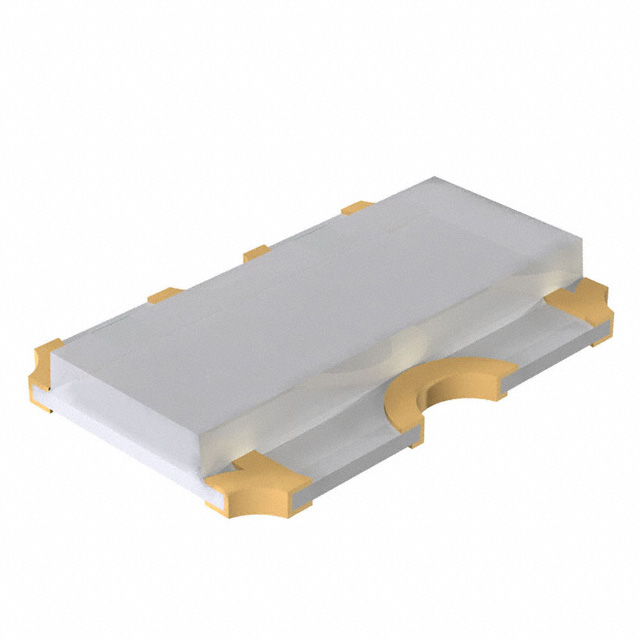

SMLP36RGB2W3

Obsolete

Rohm Semiconductor

LED RGB DIFFUSED 1510 SMD

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

LED RGB DIFFUSED 1510 SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SMLP36RGB2W3

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Current - Test [custom]	5 mA
Height (Max) [Max]	0.25 mm
Lens Color	White
Lens Size [x]	1.5 mm
Lens Size [y]	0.6 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating [custom]	110 mcd
Millicandela Rating [custom]	35 mcd
Millicandela Rating [custom]	35 mcd
Mounting Type	Surface Mount
Package / Case	1510 Metric
Package / Case	0604
Size / Dimension [x]	1.5 mm
Size / Dimension [y]	1 mm
Supplier Device Package	1510(0604)
Voltage - Forward (Vf) (Typ) [custom]	3.1 V
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3 V
Wavelength - Dominant	624 nm, 470 nm, 527 nm

Part	Size / Dimension [y]	Size / Dimension [x]	Lens Size [y]	Lens Size [x]	Supplier Device Package	Configuration	Package / Case	Package / Case	Mounting Type	Lens Color	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Style	Wavelength - Dominant	Lens Transparency	Color
Rohm Semiconductor SMLP36RGB2W3	1 mm	1.5 mm	0.6 mm	1.5 mm	1510(0604)	Independent	1510 Metric	0604	Surface Mount	White	5 mA	5 mA	5 mA	0.25 mm	110 mcd	35 mcd	35 mcd	3.1 V	2.1 V	3 V	Rectangle with Flat Top	470 nm 527 nm 624 nm	Diffused	Blue Green Red
Rohm Semiconductor SMLP36RGB2W3R	1 mm	1.5 mm	0.6 mm	1.5 mm	PICOLED	Independent	1510 Metric	0604	Surface Mount	White	5 mA	5 mA	5 mA	0.25 mm	110 mcd	35 mcd	35 mcd	3.1 V	2.1 V	3 V	Rectangle with Flat Top	470 nm 527 nm 624 nm	Diffused	Blue Green Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Red, Green, Blue (RGB) 624nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.1V Green, 3V Blue 0604 (1510 Metric)
