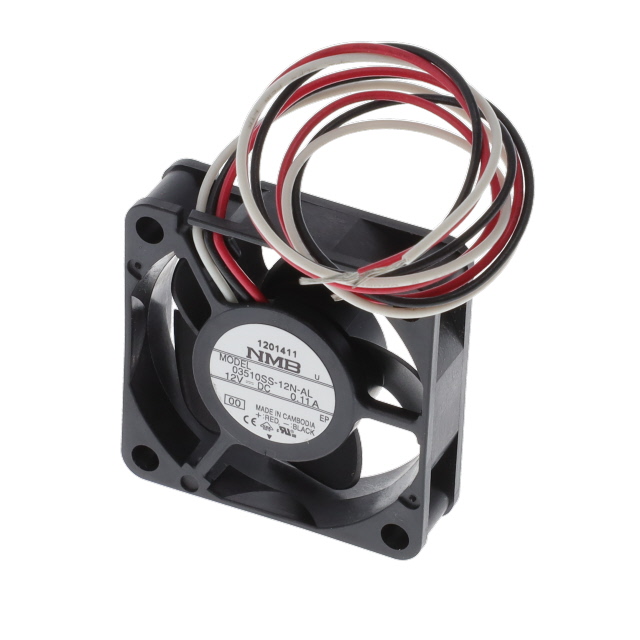

03510SS-12N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 35 MM, 10 MM, SLEEVE BEARING, 5.7 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

03510SS-12N-AL-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 12 V, SQUARE, 35 MM, 10 MM, SLEEVE BEARING, 5.7 CFM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	03510SS-12N-AL-00

Air Flow	5.7 CFM
Air Flow	0.16 m³/min
Bearing Type	Sleeve
Current Rating (Amps)	70 mA
Fan Type	Tubeaxial
Features	Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	27 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	840 mW
RPM	10000 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	0.23 in H2O
Static Pressure	57.3 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Width [y]	10 mm

03510SS Series

Part	Voltage - Rated	Current Rating (Amps)	Width [y]	Material - Blade	Noise	RPM	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Features	Air Flow	Air Flow	Lifetime @ Temp.	Termination	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Bearing Type	Weight	Weight	Static Pressure	Static Pressure
NMB TECHNOLOGIES 03510SS-05M-AA-00	5 V	120 mA	10 mm	Plastic	22.4 dB	8000 RPM	Tubeaxial	4.5 V	5.5 V	Auto Restart	0.118 m³/min	4.2 CFM	30000 Hrs	2 Wire Leads	600 mW	70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve
NMB TECHNOLOGIES 03510SS-05N-AT-00	5 V	0.2 A	10 mm	Plastic	27 dB(A)	10000 RPM	Tubeaxial	4.5 V	5.5 V	Speed Sensor (Tach)	0.157 m³/min	5.6 CFM		3 Wire Leads		70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve	10.43 g	0.023 lb	0.23 in H2O	57.3 Pa
NMB TECHNOLOGIES 03510SS-12M-AA-00	12 VDC	50 mA	10 mm	Plastic	22.4 dB	8000 RPM	Tubeaxial			Auto Restart	0.118 m³/min	4.2 CFM	30000 Hrs	2 Wire Leads	600 mW	70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve
NMB TECHNOLOGIES 03510SS-12L-AT-00	12 VDC		10 mm	Plastic			Tubeaxial			Auto Restart Speed Sensor (Tach)			30000 Hrs	3 Wire Leads		70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve
NMB TECHNOLOGIES 03510SS-12N-AL-00	12 VDC	70 mA	10 mm	Plastic	27 dB(A)	10000 RPM	Tubeaxial			Auto Restart Locked Rotor Sensor	0.16 m³/min	5.7 CFM	30000 Hrs	3 Wire Leads	840 mW	70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve			0.23 in H2O	57.3 Pa
NMB TECHNOLOGIES 03510SS-12N-AA-00	12 VDC	70 mA	10 mm	Plastic	27 dB(A)	10000 RPM	Tubeaxial			Auto Restart	0.16 m³/min	5.7 CFM	30000 Hrs	2 Wire Leads	840 mW	70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve			0.23 in H2O	57.3 Pa
NMB TECHNOLOGIES 03510SS-12L-AA-00	12 VDC		10 mm	Plastic			Tubeaxial			Auto Restart				2 Wire Leads						35 mm	35 mm	Plastic	Sleeve
NMB TECHNOLOGIES 03510SS-05N-AL-00	5 V	0.2 A	10 mm	Plastic	27 dB(A)	10000 RPM	Tubeaxial	4.5 V	5.5 V	Auto Restart Locked Rotor Sensor	0.16 m³/min	5.7 CFM	30000 Hrs	3 Wire Leads		70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve			0.23 in H2O	57.3 Pa
NMB TECHNOLOGIES 03510SS-05N-AA-00	5 V	0.2 A	10 mm	Plastic	27 dB(A)	10000 RPM	Tubeaxial	4.5 V	5.5 V	Auto Restart	0.16 m³/min	5.7 CFM	30000 Hrs	2 Wire Leads		70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve			0.23 in H2O	57.3 Pa
NMB TECHNOLOGIES 03510SS-12N-AT-00	12 VDC	70 mA	10 mm	Plastic	27 dB(A)	10000 RPM	Tubeaxial			Speed Sensor (Tach)	0.157 m³/min	5.6 CFM		3 Wire Leads	840 mW	70 °C	70 °C	-10 °C	-10 °C	35 mm	35 mm	Plastic	Sleeve	10.43 g	0.023 lb	0.23 in H2O	57.3 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.51
		10	$ 6.70
		25	$ 6.40
		50	$ 6.18
		100	$ 5.97
		480	$ 5.52
		960	$ 5.34
Newark	Each	1	$ 8.51
		1080	$ 7.72
		1980	$ 7.58
		2520	$ 7.43
		5040	$ 7.33
		10080	$ 7.07

Description

General part information

03510SS Series

Fan Tubeaxial 12VDC Square - 35mm L x 35mm H Sleeve 5.7 CFM (0.160m³/min) 3 Wire Leads
