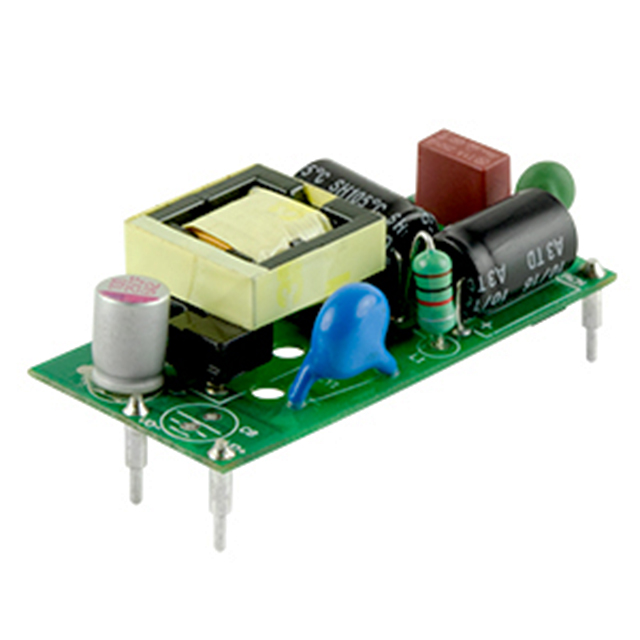

VOF-6B-S24

Active

CUI Inc.

AC/DC CONVERTER 24V 6W

Search across all available documentation for this part.

Active

CUI Inc.

AC/DC CONVERTER 24V 6W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Mounting Type	Efficiency	Standard Number	Package / Case	Number of Outputs	Applications	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Type	Line Regulation	Load Regulation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Line Regulation	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]
CUI Inc. VOF-6B-S15	Universal Input	6 W	400 mA	CB Scheme EN FCC IEC UL	Through Hole	79.03 %	60950-1 61000-3-2 61000-3-3 62368-1	4-DIP Module	1	ITE (Commercial)	15 V	70 °C	-25 °C	Open Frame	Ý1%	Ý3%	16.2 mm	1.91 in	23.3 mm	0.64 in	0.92 "	48.6 mm
CUI Inc. VOF-6B-S24	Universal Input	6 W	250 mA	CB Scheme EN FCC IEC UL	Through Hole	79.03 %	60950-1 61000-3-2 61000-3-3 62368-1	4-DIP Module	1	ITE (Commercial)	24 V	70 °C	-25 °C	Open Frame			16.2 mm	1.91 in	23.3 mm	0.64 in	0.92 "	48.6 mm	1 %	3 %	85 VAC 120 VDC	264 VAC 370 VDC
CUI Inc. VOF-6B-S12	Universal Input	6 W	500 mA	CB Scheme EN FCC IEC UL	Through Hole	79.03 %	60950-1 61000-3-2 61000-3-3 62368-1	4-DIP Module	1	ITE (Commercial)	12 V	70 °C	-25 °C	Open Frame			16.2 mm	1.91 in	23.3 mm	0.64 in	0.92 "	48.6 mm	1 %	4 %	85 VAC 120 VDC	264 VAC 370 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 8.45

General part information

Open Frame AC DC Converters 1 Output 24V 250mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
