1411149

Active

Phoenix Contact

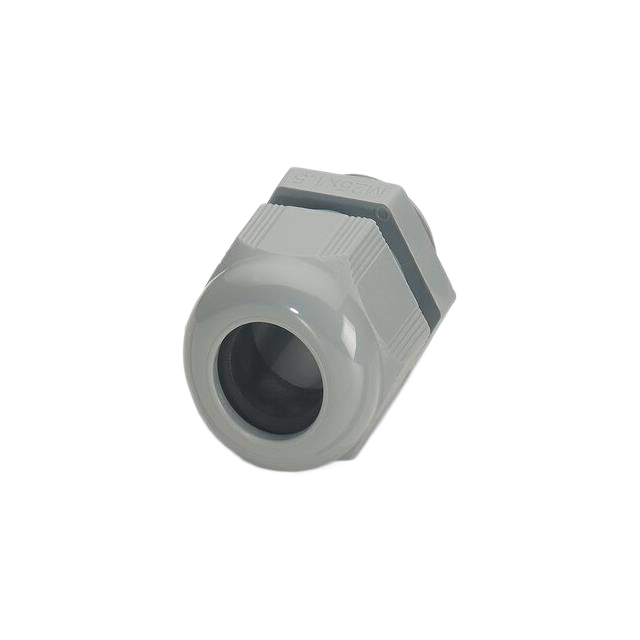

CABLE GLAND 30-38MM PG42

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 30-38MM PG42

Technical Specifications

Parameters and characteristics for this part

Specification	1411149

Color	Gray
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	38 mm
Outside Cable Diameter (Max) [Max] [diameter]	1.496 in
Outside Cable Diameter (Min) [Min] [diameter]	1.181 in
Outside Cable Diameter (Min) [Min] [diameter]	30 mm
Thread Length	13 mm
Thread Length	0.512 in
Thread Size	PG42
Type	Cable Gland

Part	Thread Size	Includes	Type	Material	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color
Phoenix Contact 1424493	PG42	Seal	Cable Gland	Polyamide (PA) Nylon	100 °C	-40 °C	IP68 - Dust Tight Waterproof	38 mm	1.496 in	13 mm	0.512 in	1.181 in	30 mm	Gray
Phoenix Contact 1411149	PG42	Seal	Cable Gland	Polyamide (PA) Nylon	100 °C	-40 °C	IP66/IP68	38 mm	1.496 in	13 mm	0.512 in	1.181 in	30 mm	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.82

General part information

Cable Gland Polyamide (PA), Nylon PG42 Gray
