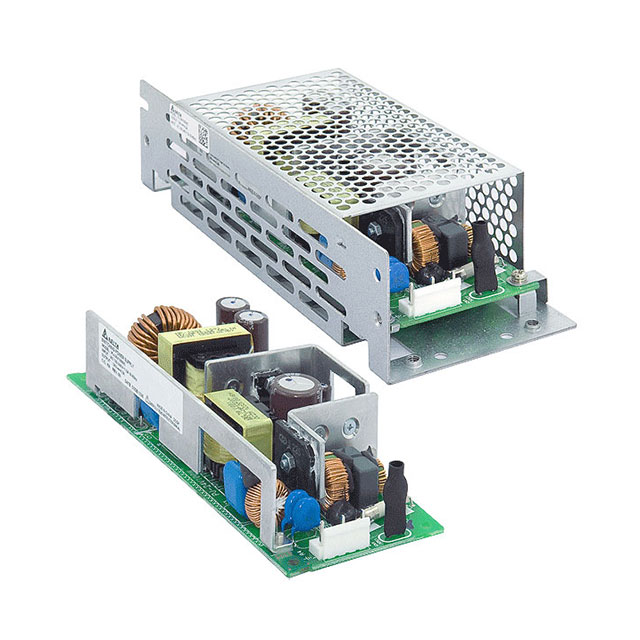

PJ-24V100WLNA

Active

Delta Electronics

AC/DC CONVERTER 24V 100W

Search across all available documentation for this part.

Active

Delta Electronics

AC/DC CONVERTER 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	PJ-24V100WLNA

Applications	ITE (Commercial)
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	4.3 A
Efficiency	89 %
Features	PFC, Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	100 W
Size / Dimension [x]	7.28 in
Size / Dimension [x]	185 mm
Size / Dimension [y]	2.83 in
Size / Dimension [y]	72 mm
Size / Dimension [z]	1.65 "
Size / Dimension [z]	45 mm
Type	Open Frame
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Mounting Type	Type	Current - Output 1	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Applications	Voltage - Isolation
Delta Electronics PJ-24V100WLRA	1	Adjustable Output PFC Remote On/Off Universal Input	-10 °C	70 °C	CB CE cURus TUV	Chassis Mount	Open Frame	4.3 A	24 V	100 W	7.28 in	1.65 "	2.83 in	185 mm	72 mm	45 mm	89 %	ITE (Commercial)	3000 V
Delta Electronics PJ-24V100WLNA	1	Adjustable Output PFC Universal Input	-10 °C	70 °C	CB CE cURus TUV	Chassis Mount	Open Frame	4.3 A	24 V	100 W	7.28 in	1.65 "	2.83 in	185 mm	72 mm	45 mm	89 %	ITE (Commercial)	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	40	$ 48.99

General part information

Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
