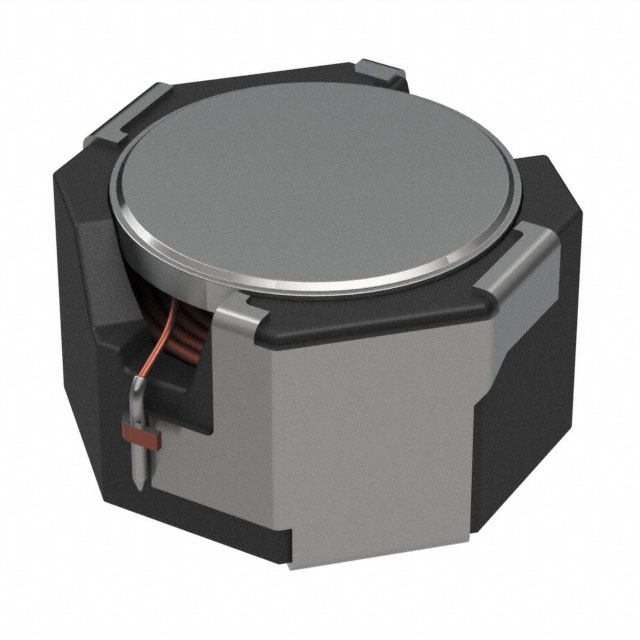

MDH10060C-470MA=P3

NRND

Murata Power Solutions Inc.

FIXED IND 47UH 2A 74 MOHM SMD

Search across all available documentation for this part.

NRND

Murata Power Solutions Inc.

FIXED IND 47UH 2A 74 MOHM SMD

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Tolerance	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Material - Core	Inductance Frequency - Test	Current - Saturation (Isat)	Ratings	DC Resistance (DCR)	Inductance
Murata Power Solutions Inc. MDH10060C-471MA=P3	Nonstandard	20 %	0.56 A	10 mm	0.394 in	0.398 "	10.1 mm	Surface Mount	Drum Core Wirewound	6.3 mm	0.248 in	Shielded	-55 °C	150 °C	Ferrite	100 kHz	560 mA	AEC-Q200	750 mOhm
Murata Power Solutions Inc. MDH10060C-4R7NA=P3	Nonstandard	30 %	4.9 A	10 mm	0.394 in	0.398 "	10.1 mm	Surface Mount	Drum Core Wirewound	6.3 mm	0.248 in	Shielded	-55 °C	150 °C	Ferrite	100 kHz	5.9 A	AEC-Q200	10 mOhm	4.7 ÁH
Murata Power Solutions Inc. MDH10060C-330MA=P3	Nonstandard	20 %	2.2 A	10 mm	0.394 in	0.398 "	10.1 mm	Surface Mount	Drum Core Wirewound	6.3 mm	0.248 in	Shielded	-55 °C	150 °C	Ferrite	100 kHz	2.2 A	AEC-Q200	61 mOhm	33 µH
Murata Power Solutions Inc. MDH10060C-470MA=P3	Nonstandard	20 %	2 A	10 mm	0.394 in	0.398 "	10.1 mm	Surface Mount	Drum Core Wirewound	6.3 mm	0.248 in	Shielded	-55 °C	150 °C	Ferrite	100 kHz	1.9 A	AEC-Q200	74 mOhm	47 µH
Murata Power Solutions Inc. MDH10060C-150MA=P3	Nonstandard	20 %	3.1 A	10 mm	0.394 in	0.398 "	10.1 mm	Surface Mount	Drum Core Wirewound	6.3 mm	0.248 in	Shielded	-55 °C	150 °C	Ferrite	100 kHz	3.4 A	AEC-Q200	27 mOhm	15 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 µH Shielded Drum Core, Wirewound Inductor 2 A 74mOhm Nonstandard
