DF3D-4P-2H(50)

Obsolete

Hirose Electric USA, Inc.

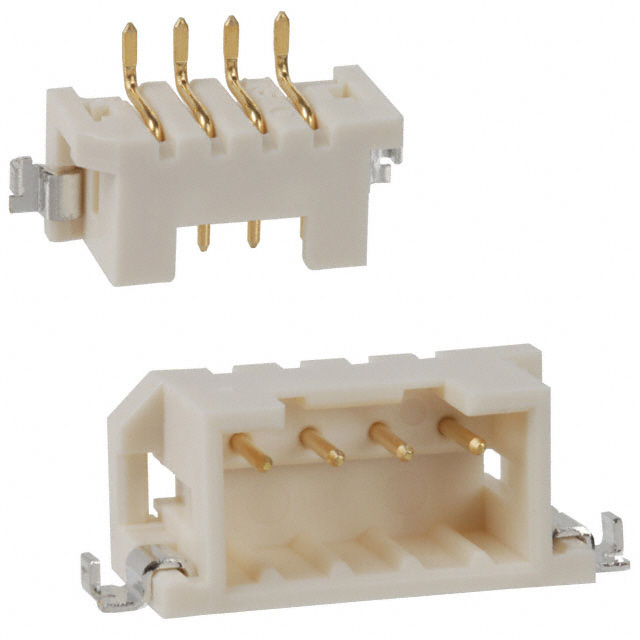

CONN HEADER SMD R/A 4POS 2MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HEADER SMD R/A 4POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF3D-4P-2H(50)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Beige
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Fastening Type	Number of Positions	Contact Finish - Mating	Contact Type	Style	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Features	Insulation Color	Connector Type	Shrouding	Contact Material	Number of Positions Loaded	Insulation Material	Termination	Number of Rows	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Contact Finish - Post
Hirose Electric USA, Inc. DF3D-4P-2H(50)	105 ░C	-55 °C	Circular	Push-Pull	4	Gold	Male Pin	Board to Board Cable	5.6 mm	0.22 in	0.079 in	2 mm	Solder Retention	Beige	Header	Shrouded - 4 Wall	Brass	All	Nylon Polyamide (PA)	Solder	1	3 A	Surface Mount Right Angle	UL94 V-0
Hirose Electric USA, Inc. DF3D-3P-2H(50)	105 ░C	-55 °C	Circular	Push-Pull		Gold	Male Pin	Board to Board Cable	5.6 mm	0.22 in	0.079 in	2 mm	Solder Retention	Beige	Header	Shrouded - 4 Wall	Brass	All	Nylon Polyamide (PA)	Solder	1	3 A	Surface Mount Right Angle	UL94 V-0
Hirose Electric USA, Inc. DF3D-2P-2H(20)	105 ░C	-55 °C	Circular	Push-Pull	2		Male Pin	Board to Board Cable	5.6 mm	0.22 in	0.079 in	2 mm	Solder Retention	Beige	Header	Shrouded - 4 Wall	Brass	All	Nylon Polyamide (PA)	Solder	1	3 A	Surface Mount Right Angle	UL94 V-0	Tin
Hirose Electric USA, Inc. DF3D-4P-2H(20)	105 ░C	-55 °C	Circular	Push-Pull	4		Male Pin	Board to Board Cable	5.6 mm	0.22 in	0.079 in	2 mm	Solder Retention	Beige	Header	Shrouded - 4 Wall	Brass	All	Nylon Polyamide (PA)	Solder	1	3 A	Surface Mount Right Angle	UL94 V-0	Tin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)

Technical documentation and resources
