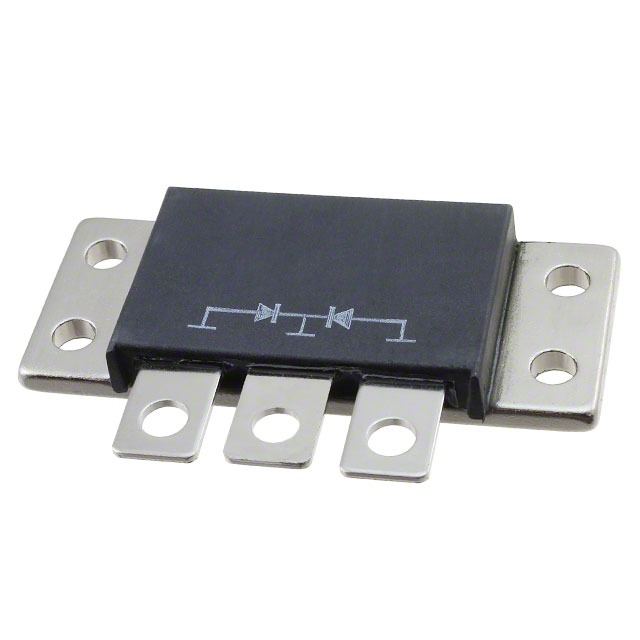

169CMQ135

Active

SMC Diode Solutions

DIODE MOD SCHOT 135V 80A TO249AA

Search across all available documentation for this part.

Active

SMC Diode Solutions

DIODE MOD SCHOT 135V 80A TO249AA

Technical Specifications

Parameters and characteristics for this part

Specification	169CMQ135

Current - Average Rectified (Io) (per Diode) [custom]	80 A
Current - Reverse Leakage @ Vr	1.5 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-249AA
Speed	200 mA, 500 ns
Supplier Device Package	TO-249AA
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	135 V
Voltage - Forward (Vf) (Max) @ If	850 mV

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Technology	Mounting Type	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Diode Configuration	Supplier Device Package	Current - Average Rectified (Io) (per Diode) [custom]	Voltage - DC Reverse (Vr) (Max) [Max]
SMC Diode Solutions 169CMQ150	850 mV	TO-249AA	Schottky	Chassis Mount	200 mA 500 ns	150 °C	-55 °C	1.5 mA	1 Pair Common Cathode	TO-249AA	80 A
SMC Diode Solutions 169CMQ135	850 mV	TO-249AA	Schottky	Chassis Mount	200 mA 500 ns	150 °C	-55 °C	1.5 mA	1 Pair Common Cathode	TO-249AA	80 A	135 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	528	$ 34.05

General part information

Diode Array 1 Pair Common Cathode 135 V 80A Chassis Mount TO-249AA
