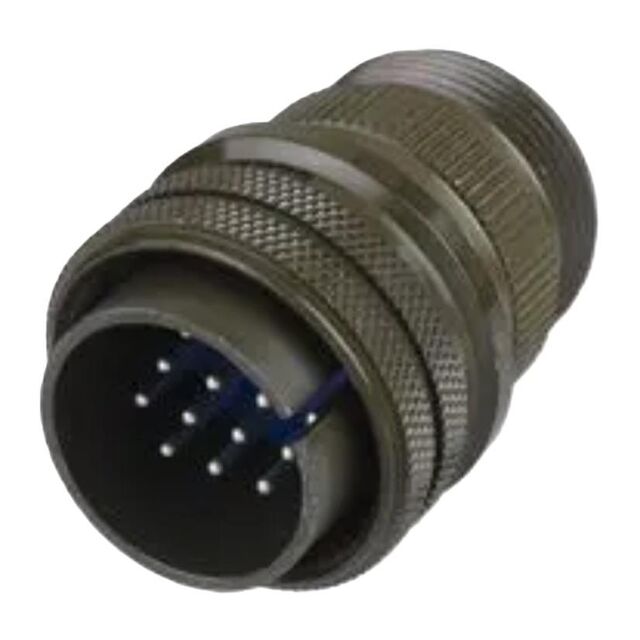

D38999/26LG16PN
ActiveCorsair
CORSAIR_
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D38999/26LG16PN
ActiveCorsair
CORSAIR_
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D38999/26LG16PN |
|---|---|
| Applications | Aviation, Marine, Military, Aerospace |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Features | Self Locking |
| Grade | Military |
| Ingress Protection | Weathertight |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Qualification | MIL-DTL-38999 Series II |
| Shell Size - Insert | 21-16 |
| Shell Size, MIL | G |
| Shielding | Unshielded |
| Termination | Crimp |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 106.20 | |
| 25 | $ 101.15 | |||
| 250 | $ 87.29 | |||
| 1000 | $ 82.75 | |||
| Box | 5 | $ 158.26 | ||
| 10 | $ 145.60 | |||
| 50 | $ 133.95 | |||
| 100 | $ 123.24 | |||
| 500 | $ 113.38 | |||
Description
General part information
D38999/26LG Series
16 Position Circular Connector Plug, Male Pins Crimp
